Barom 58 - Radio Instrument Panel

Audio Selector Panel


pma6000b

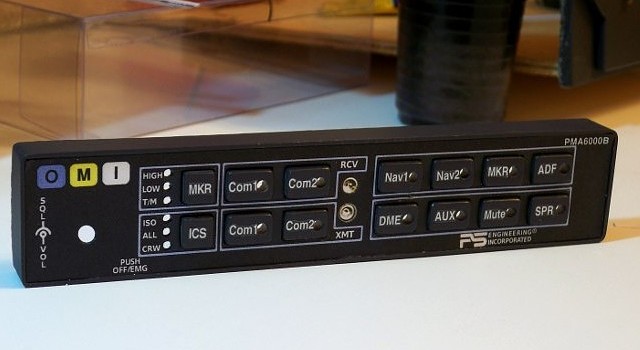

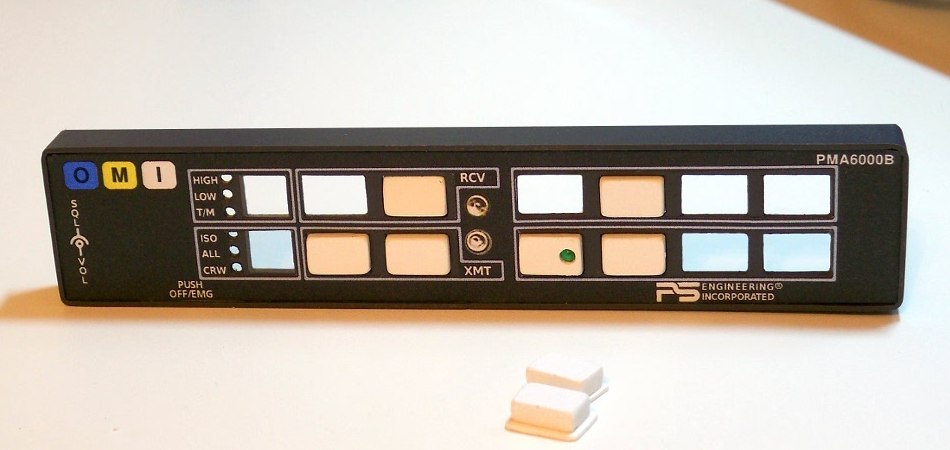

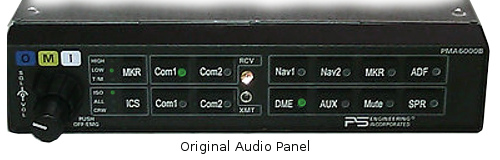

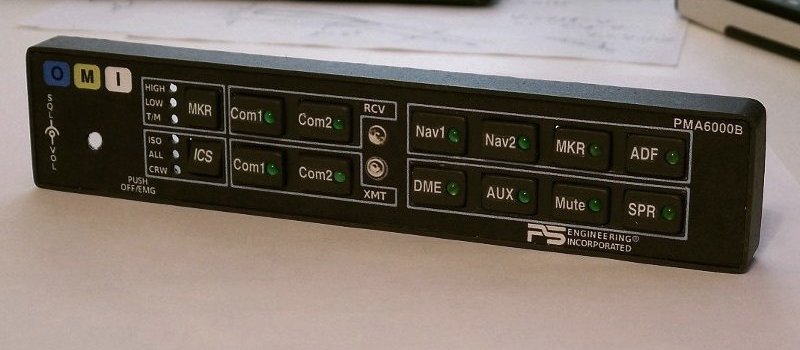

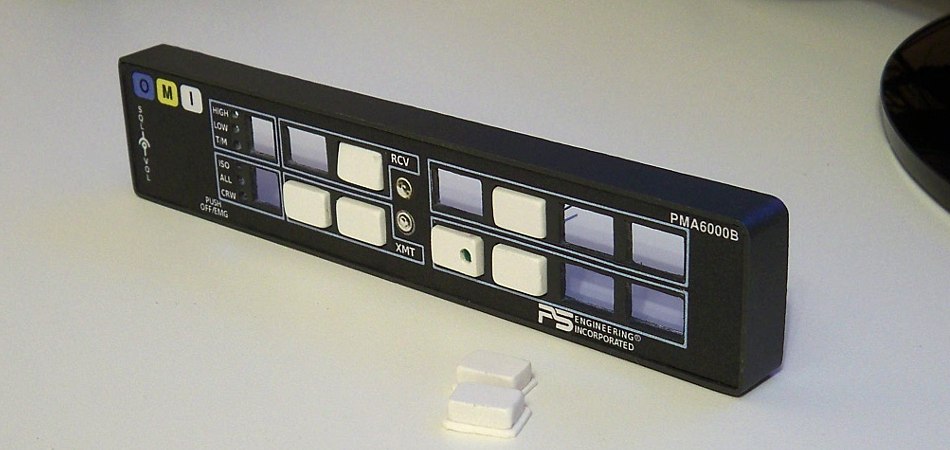

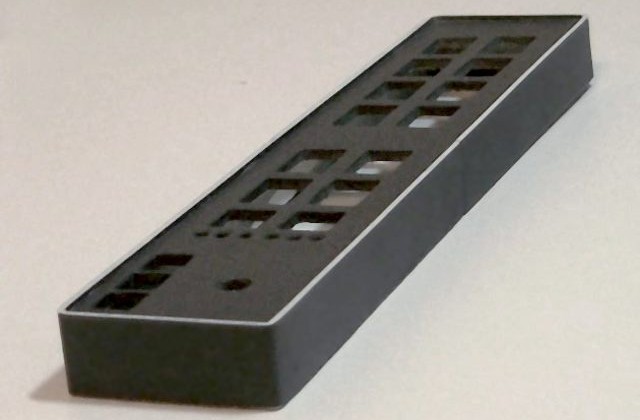

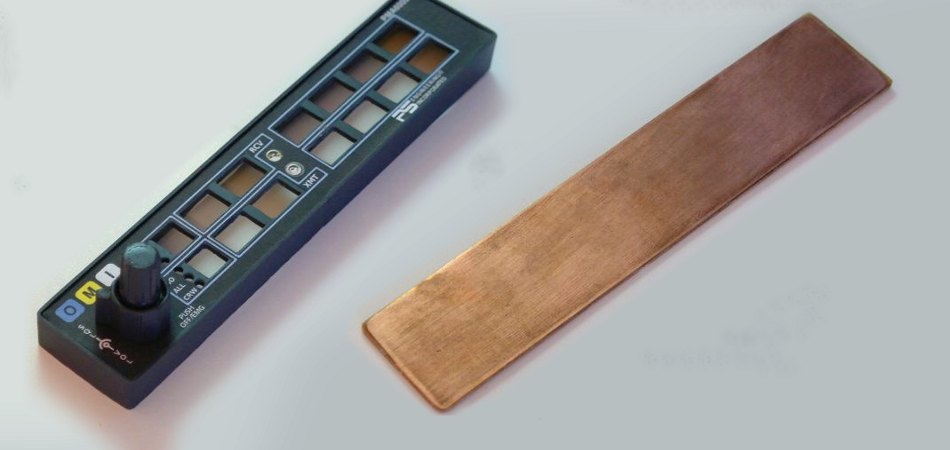

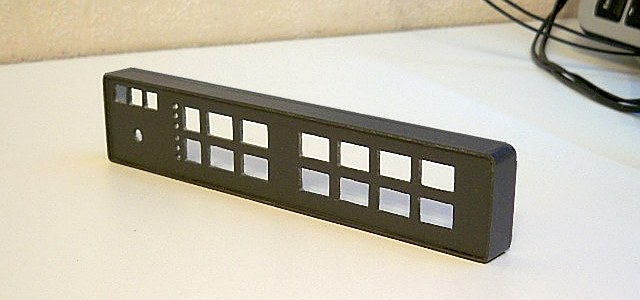

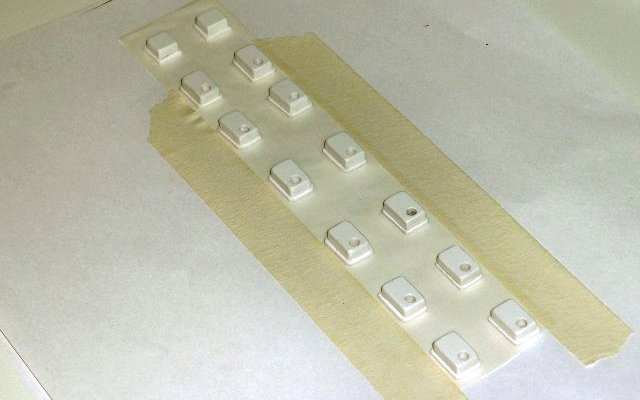

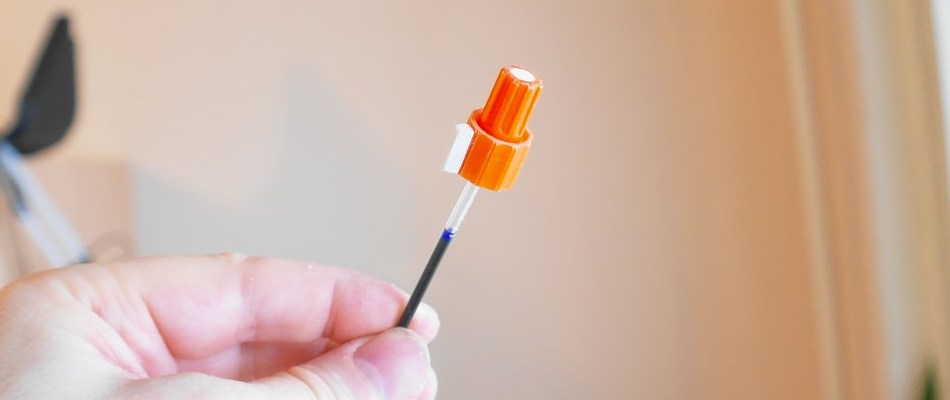

Audio Selector Panel PMA6000B of PS Engineering was chosen for replication in this cockpit. See full info about this unit at the official PSI site: ps-engineering.com/ PMA6000B.

b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img
b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img
b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img

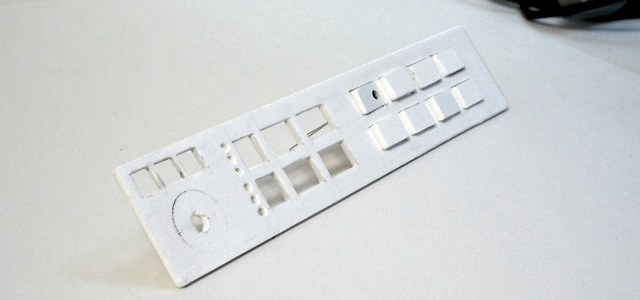

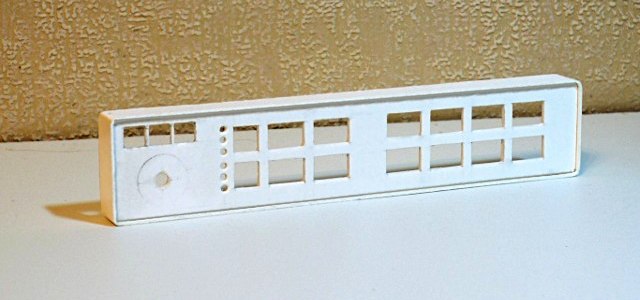

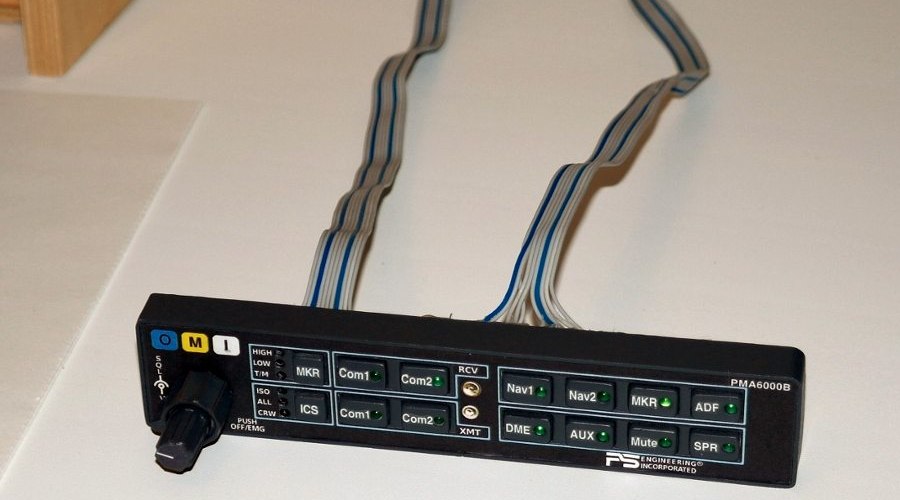

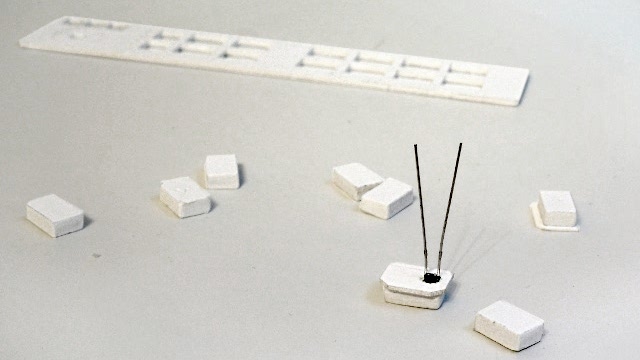

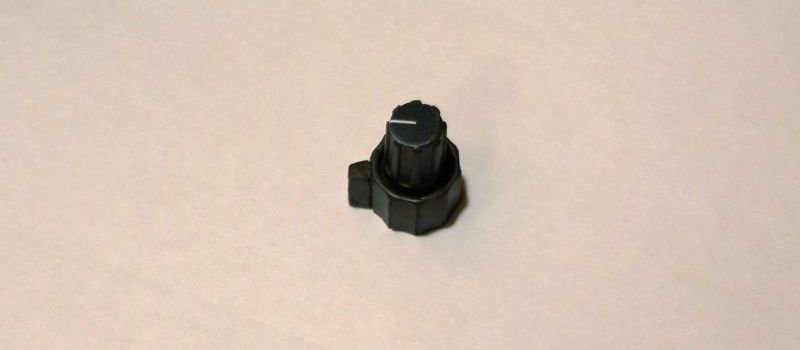

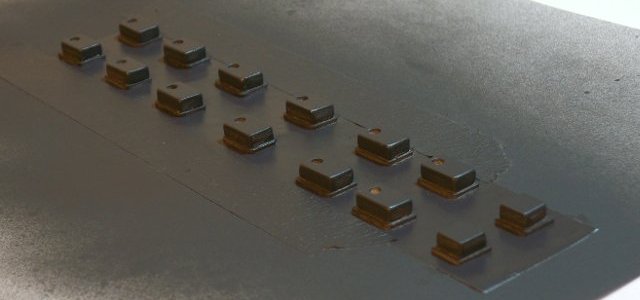

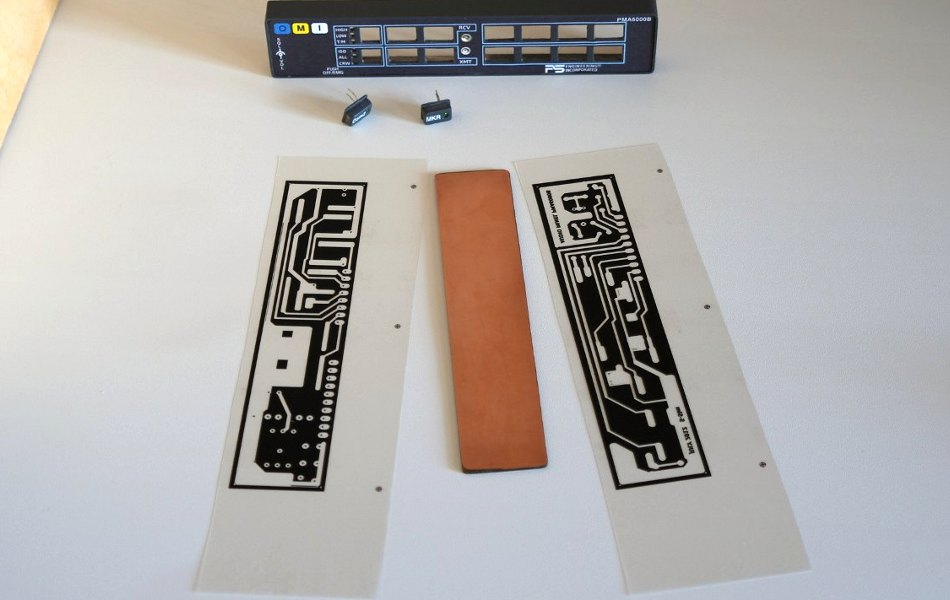

Assembled audio panel has two data cables. One of them has the 8-bit port for connecting to the bus board, and used for buttons input. The other cable is connected to the LED registers board for controlling the leds in the buttons and OMI lights.

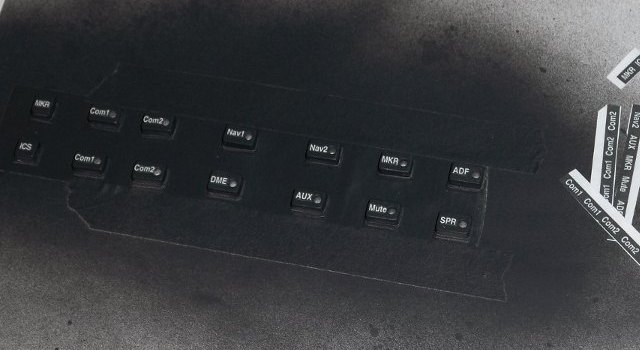

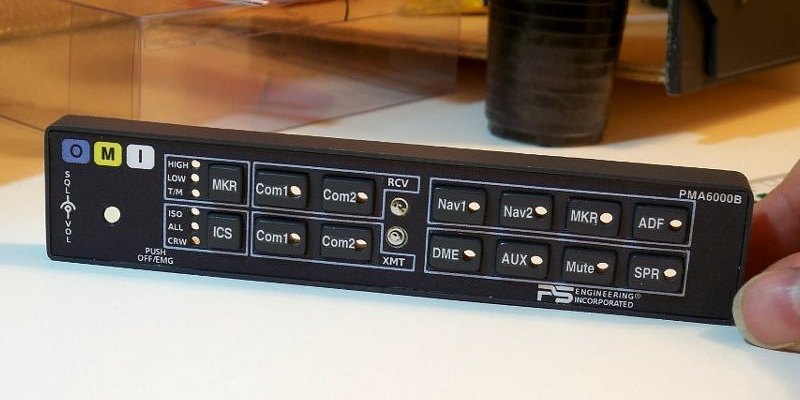

Working buttons and LEDs are: Com1(receiver), Com2(receiver), Nav1, Nav2, MKR, ADF, DME, SPK (for real switching between headset and speaker), OMI lights. Transmitter Com1 is always ON

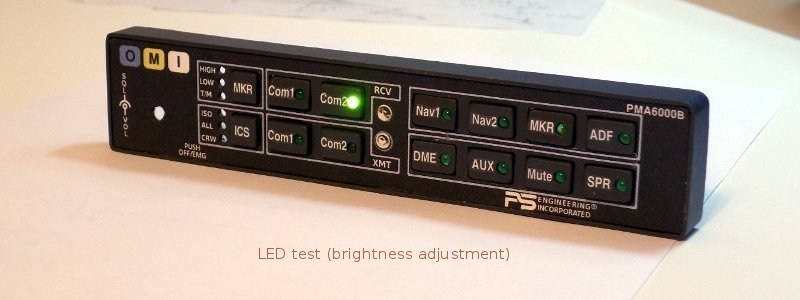

Audio Panel Selector Test

b58img b58img b58img

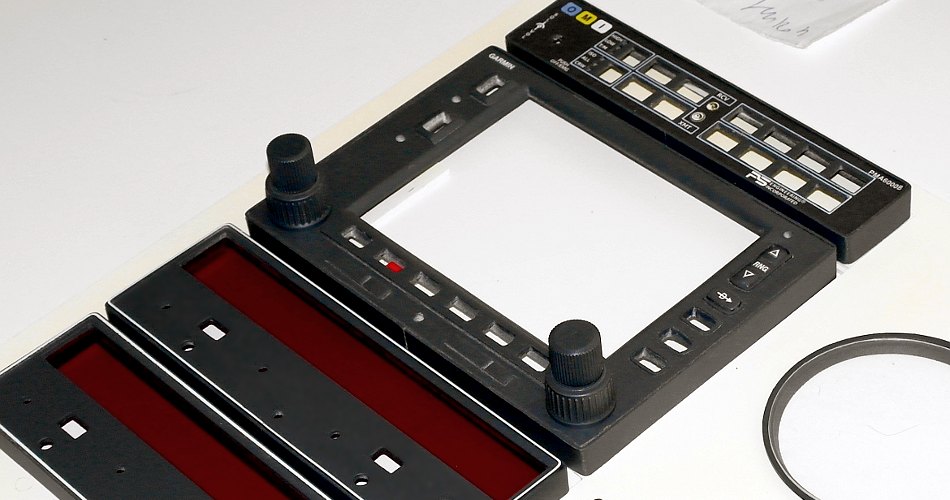

Radio panel - NAV/COM, ADF, Transponder, GPS

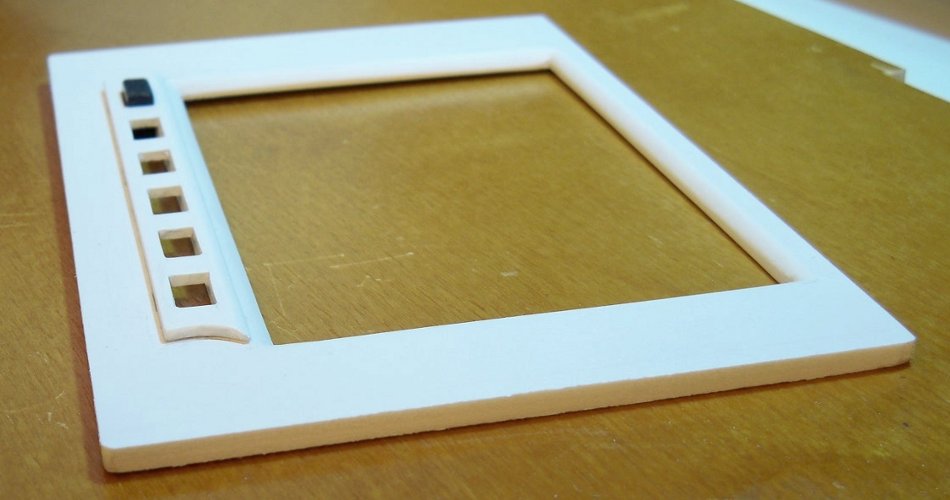

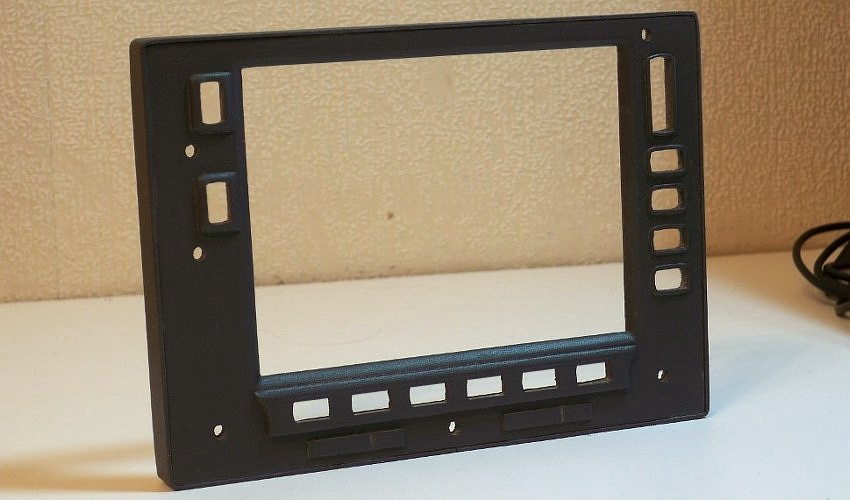

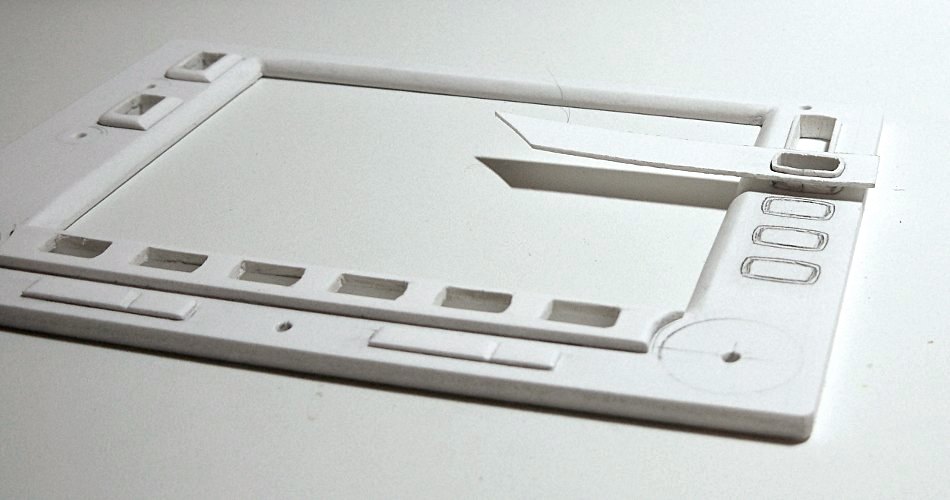

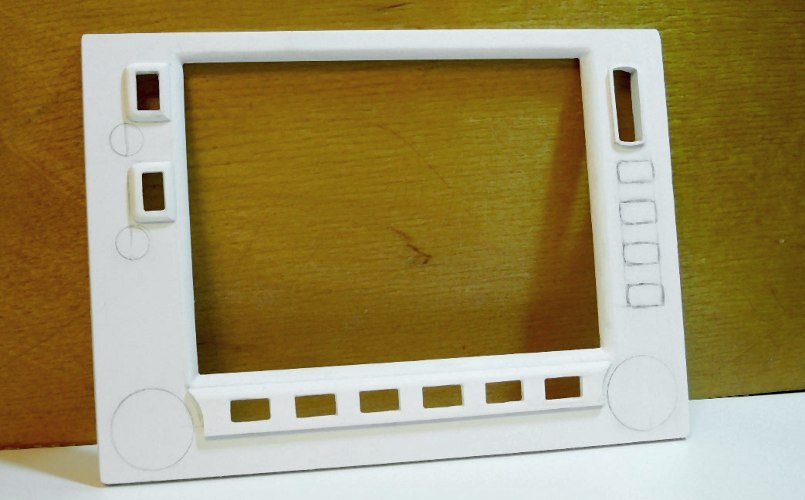

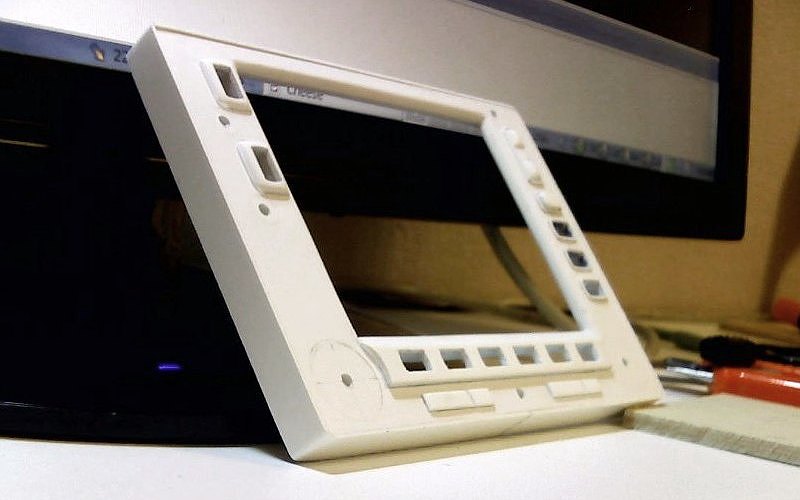

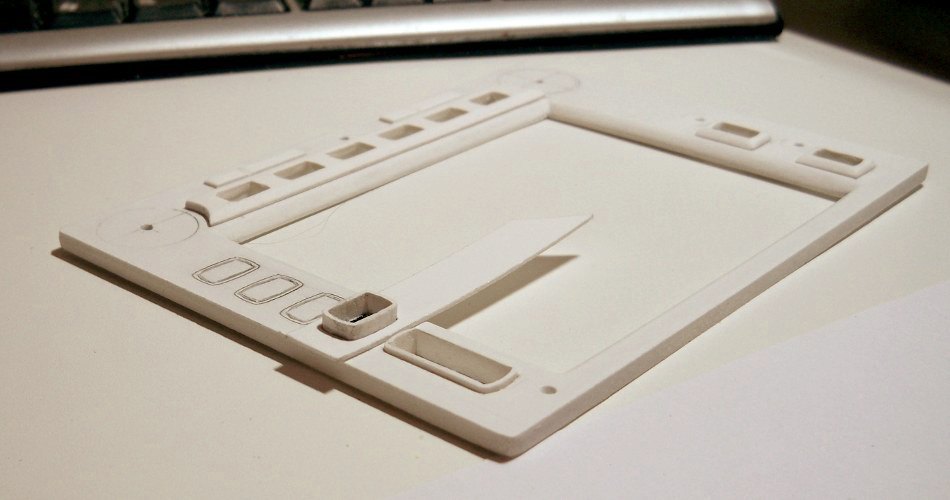

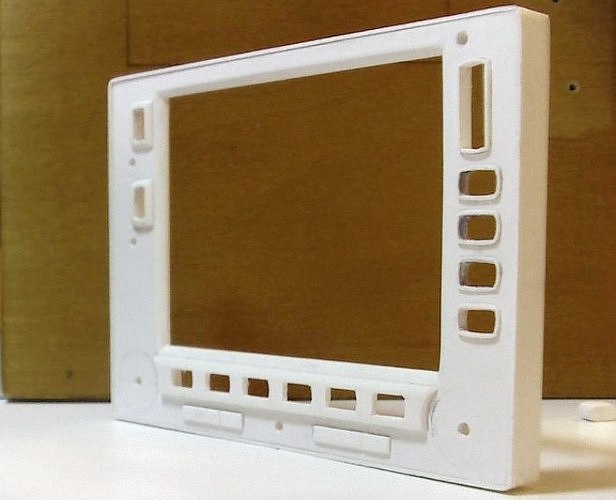

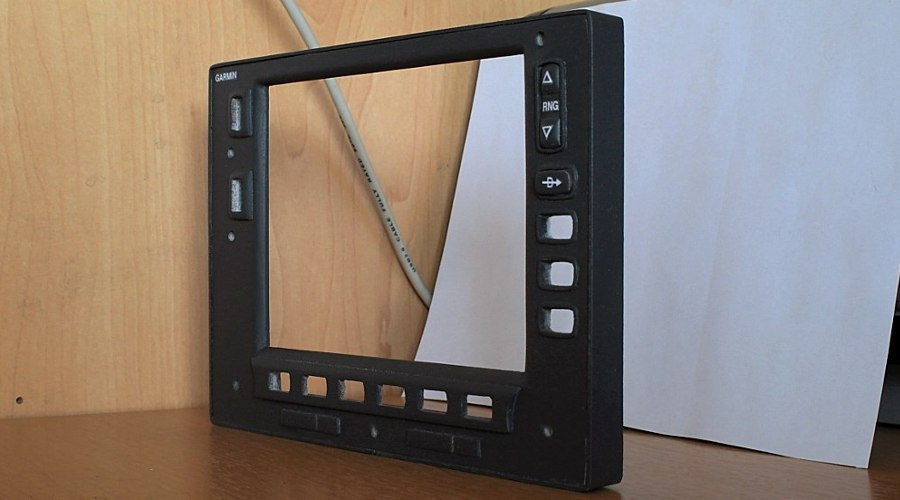

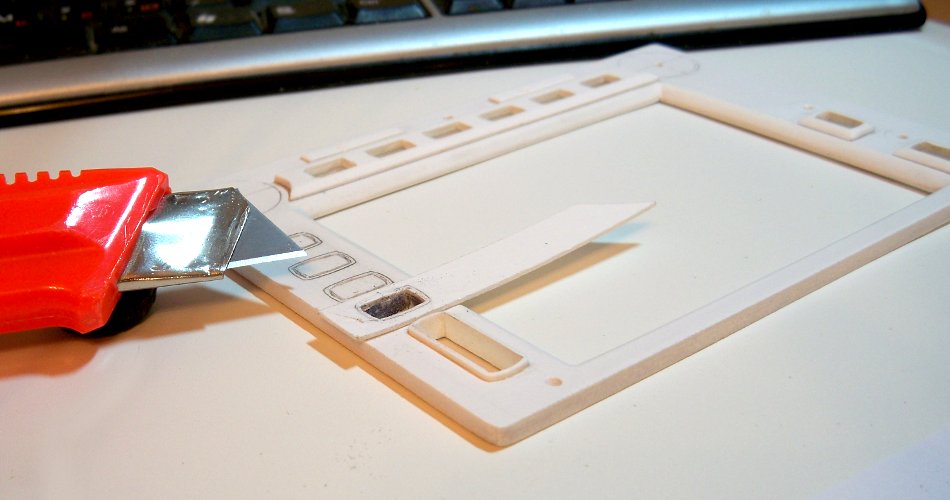

GPS

b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img
b58img b58img b58img b58img

b58img b58img b58img b58img

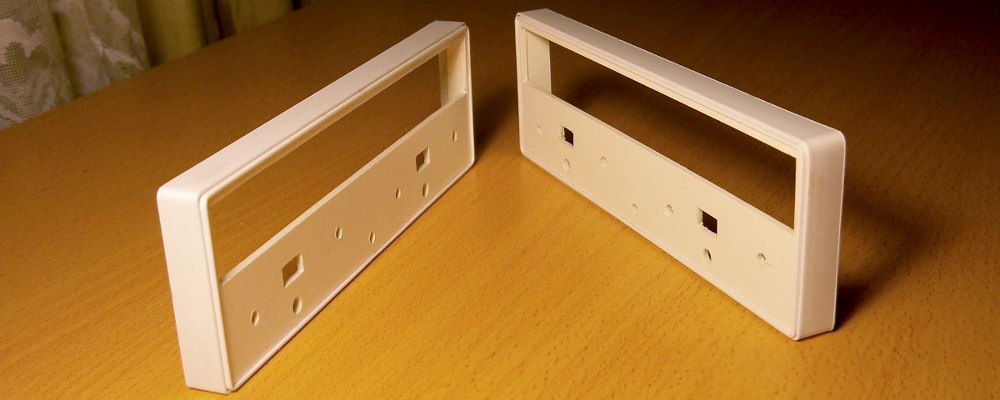

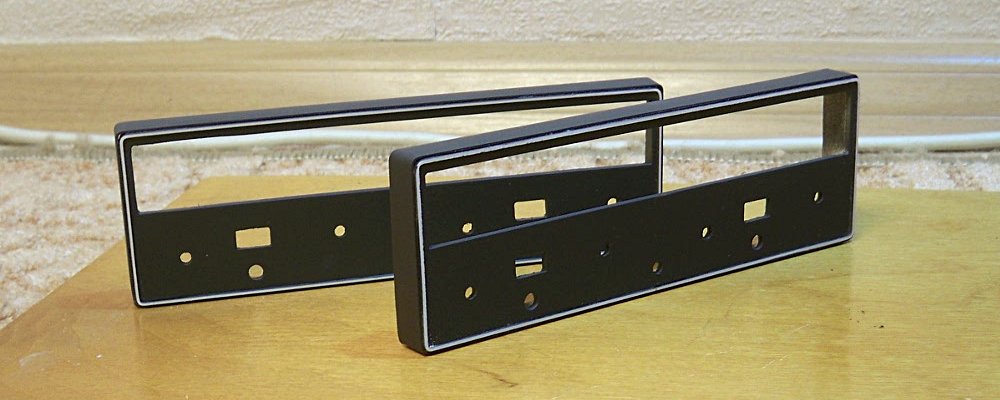

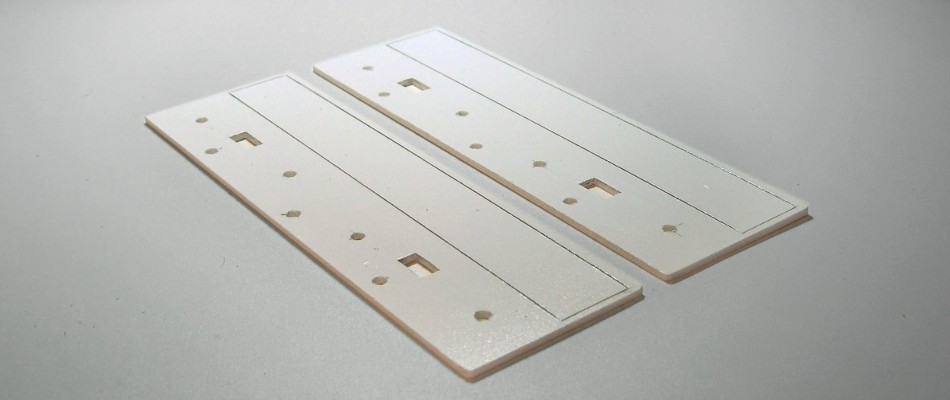

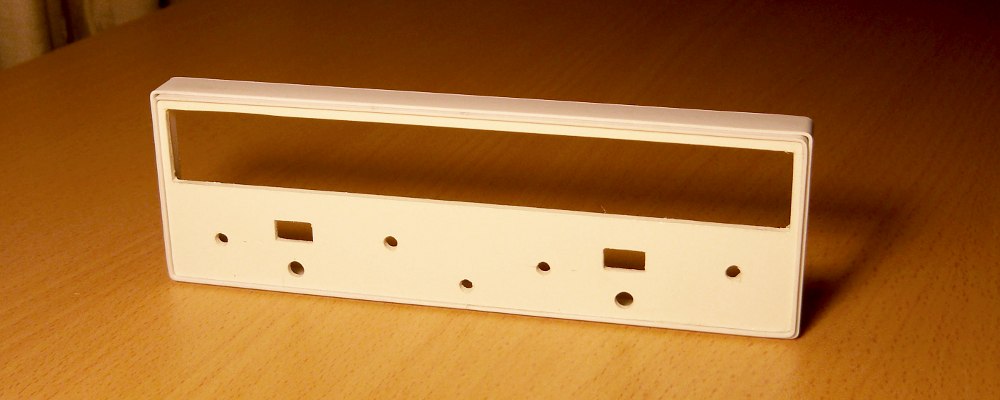

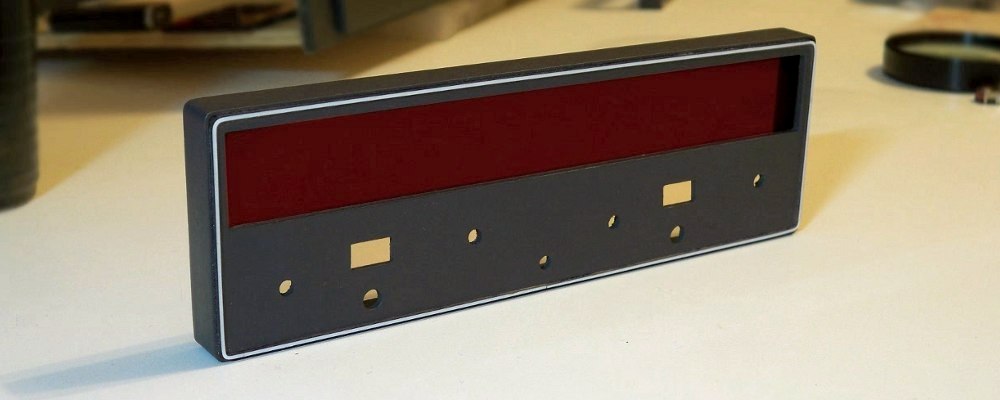

Nav/Com Bendix/King KX 155A


b58img
Original KX 155A


b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img

b58img
Ready and go!




ADF (automatic direction finder) KR 87



b58img

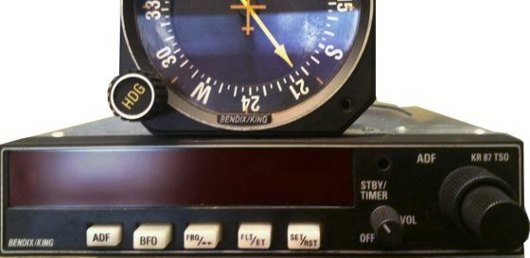

Original KR87

b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img

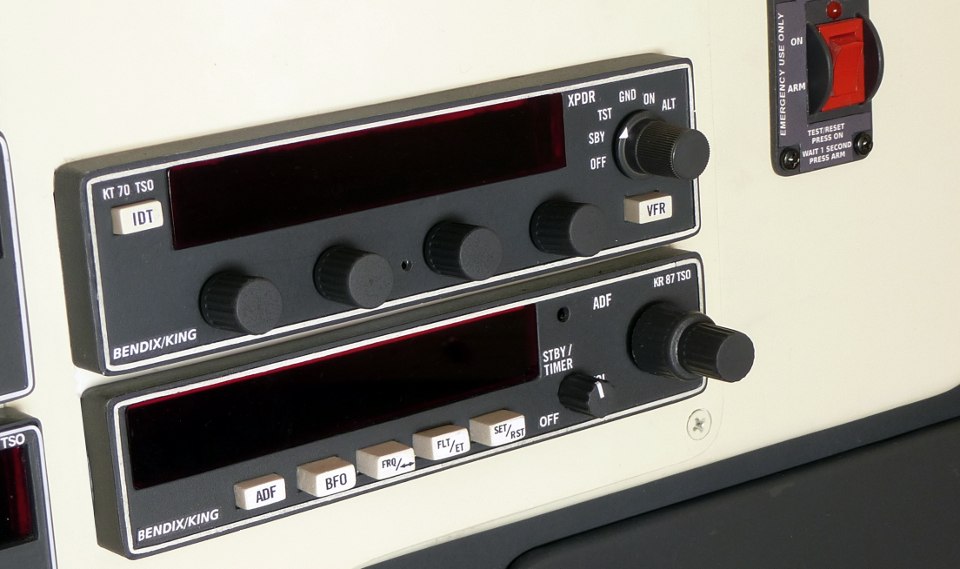

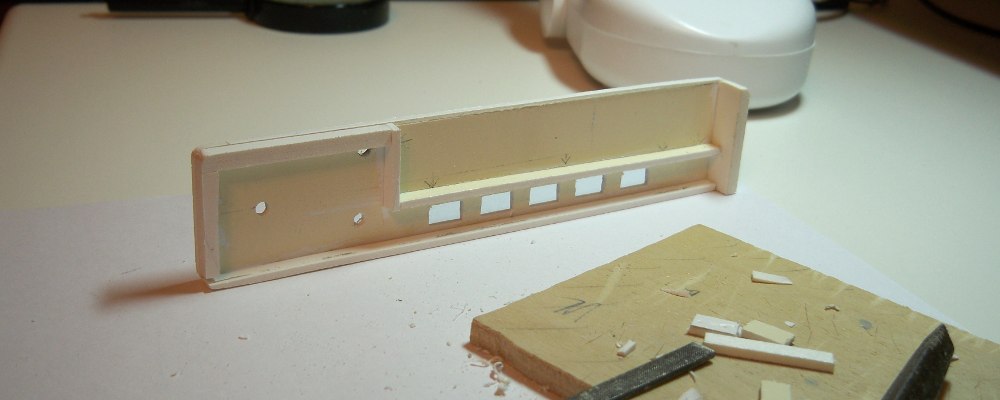

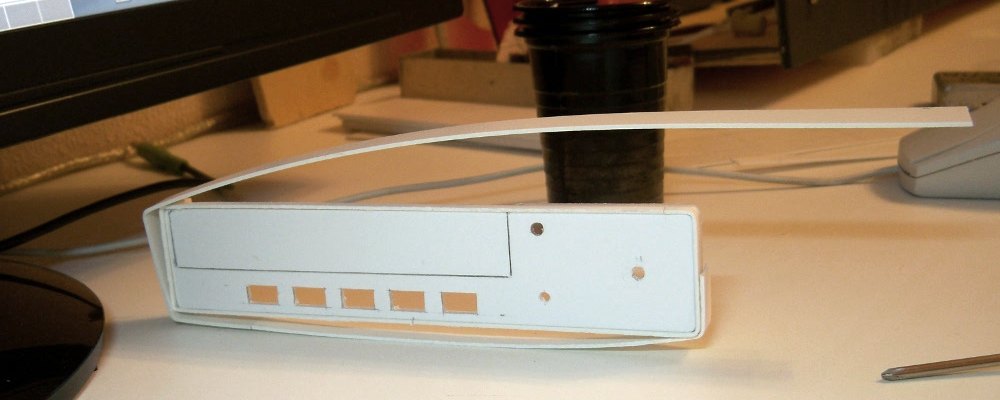

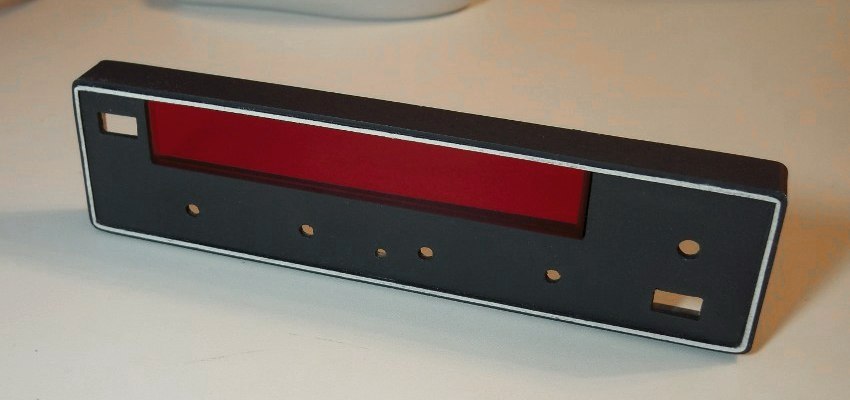

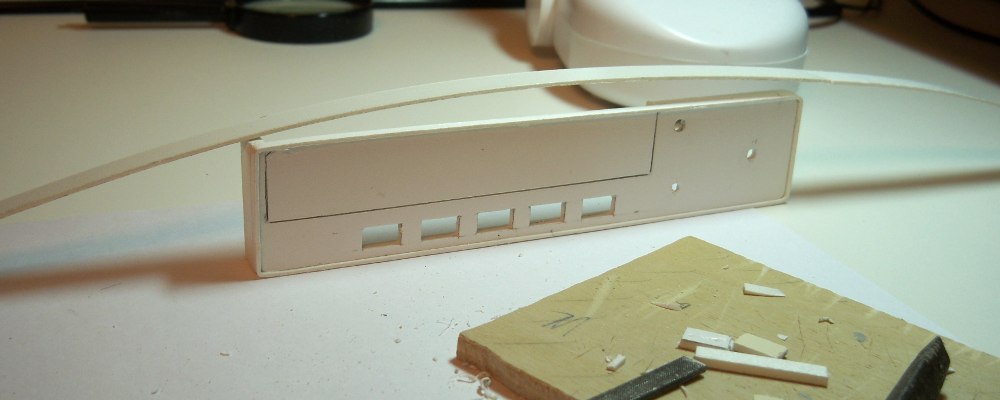

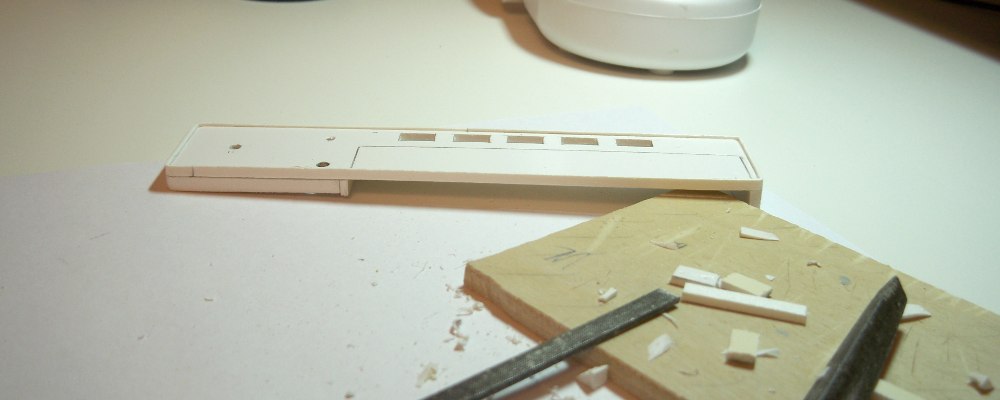

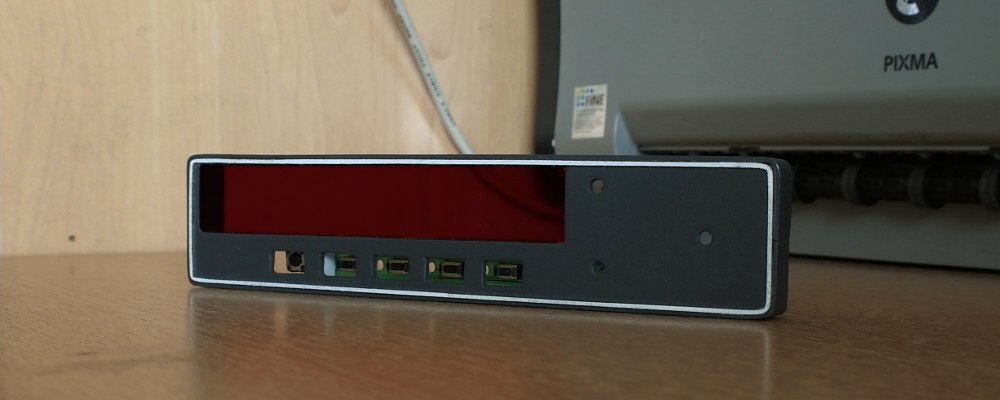

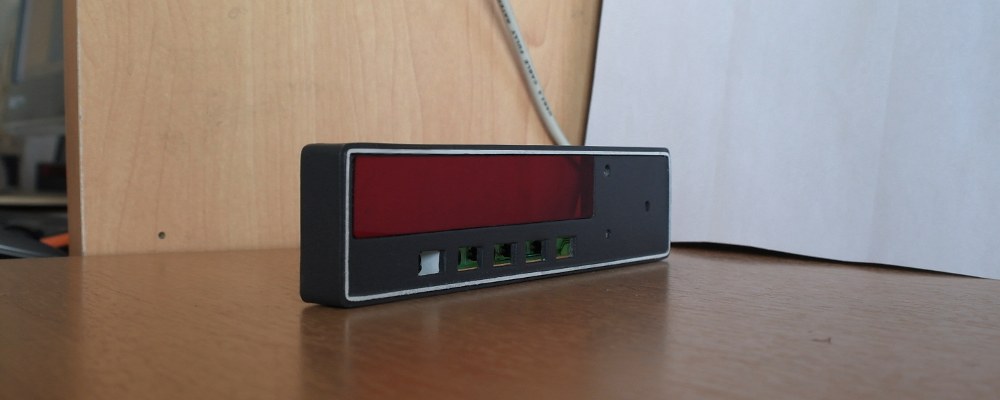

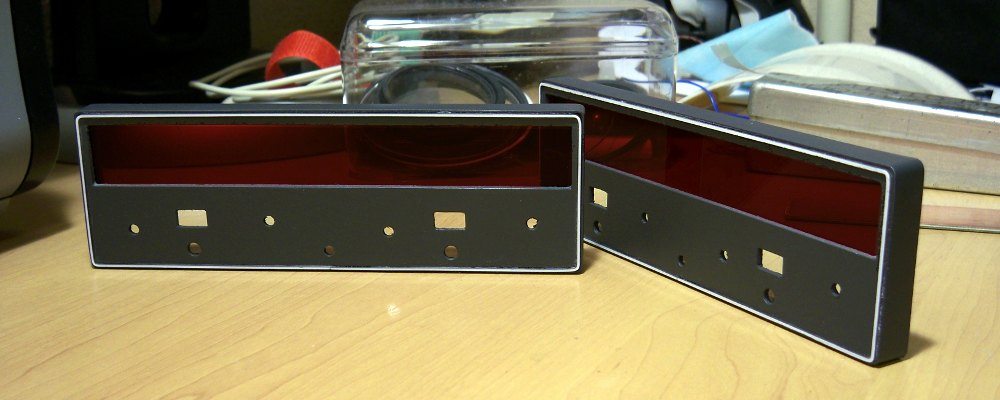

KR 87 is operating in pair with KI-227 indicator (or KI-228). ADF is made of PVC of 1 to 4 mm thick, and 3-mm red plexi has been used for the indicator window

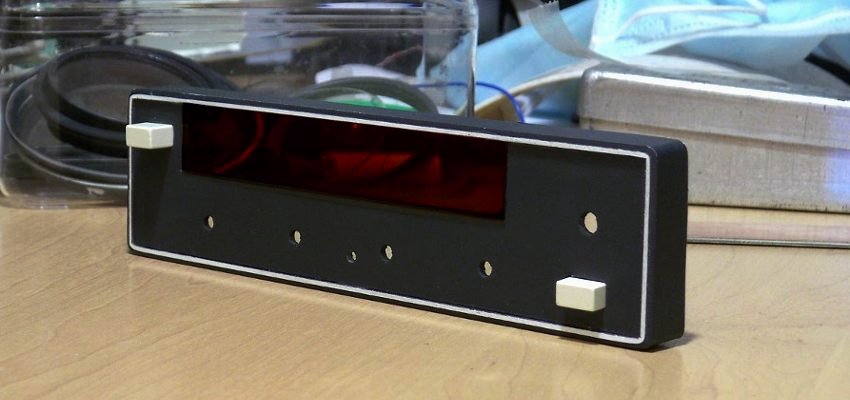

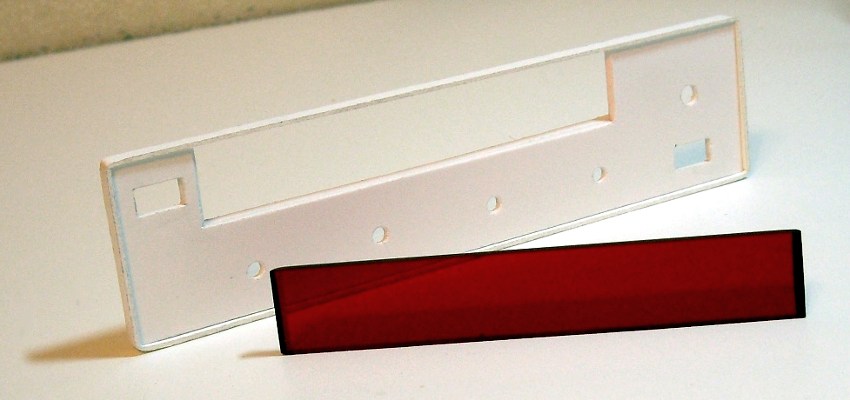

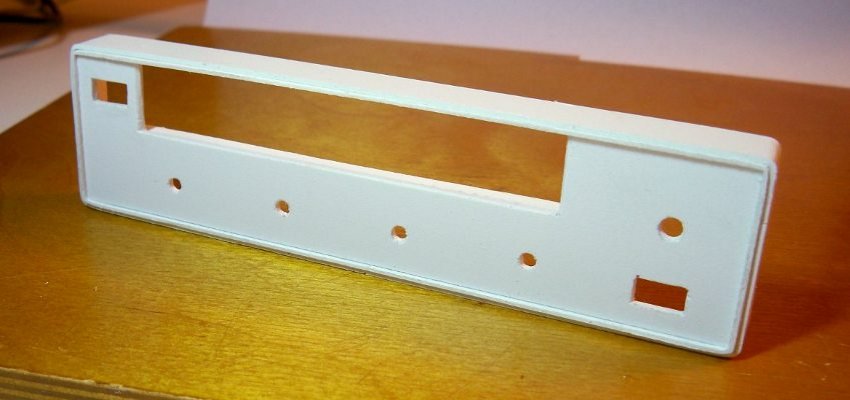

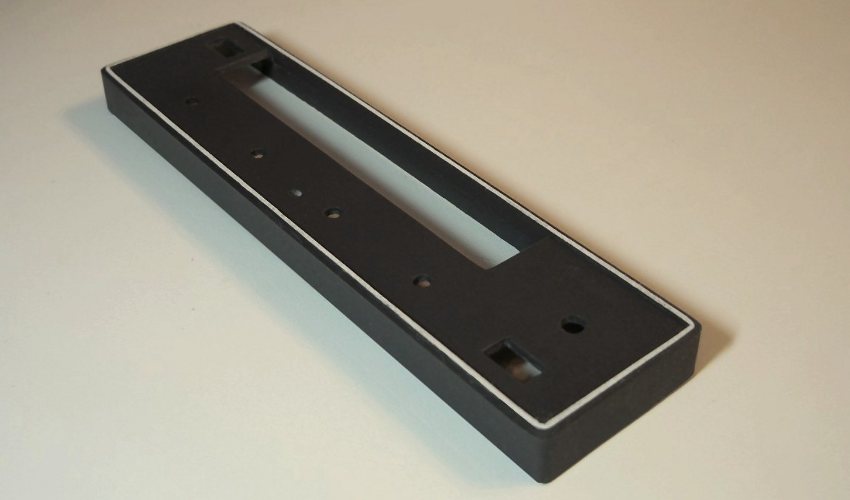

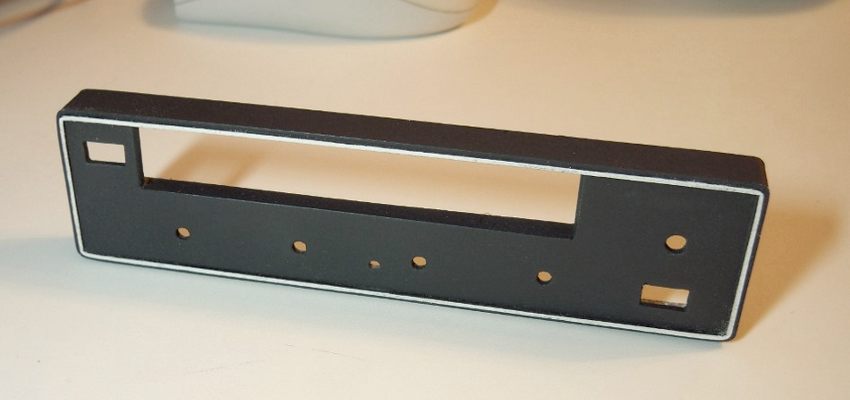

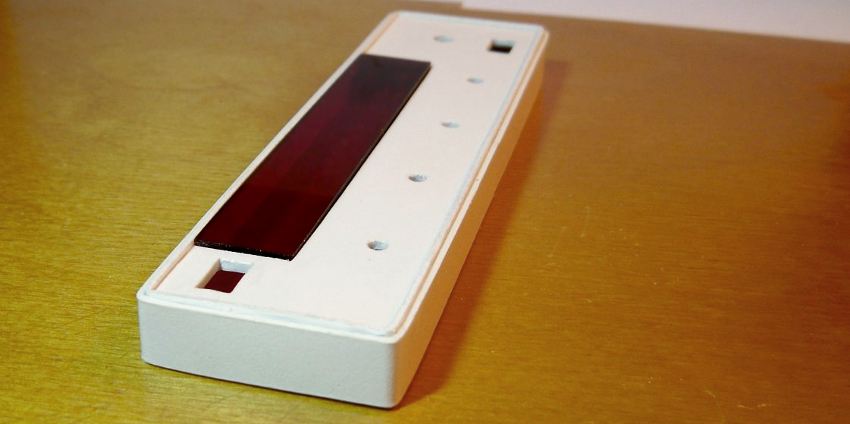

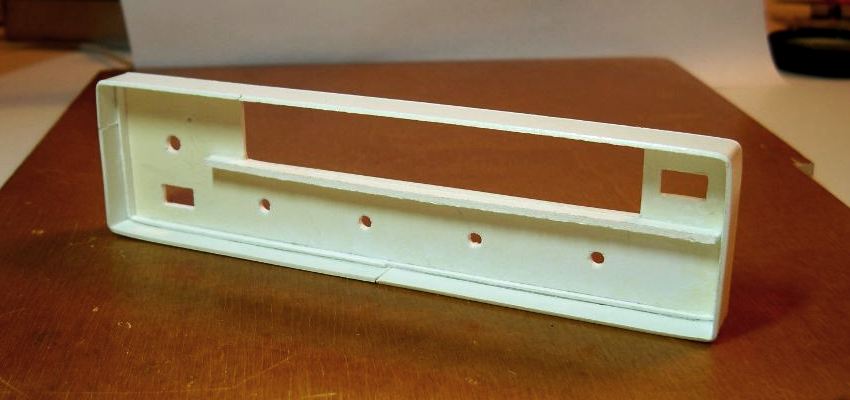

Transponder Bendix/King KT 70


b58img

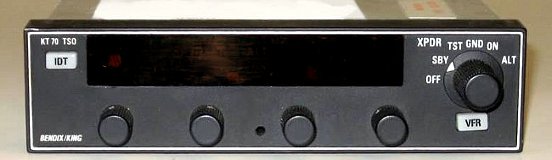

Original Bendix/King KT 70

b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img
b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img






ARTEX ELT-200 remote switch and vent

Emergency switch is made from 2-3mm PVC and top parts of the red switch (See original ELT-200).


b58img b58img b58img

b58img b58img b58img
