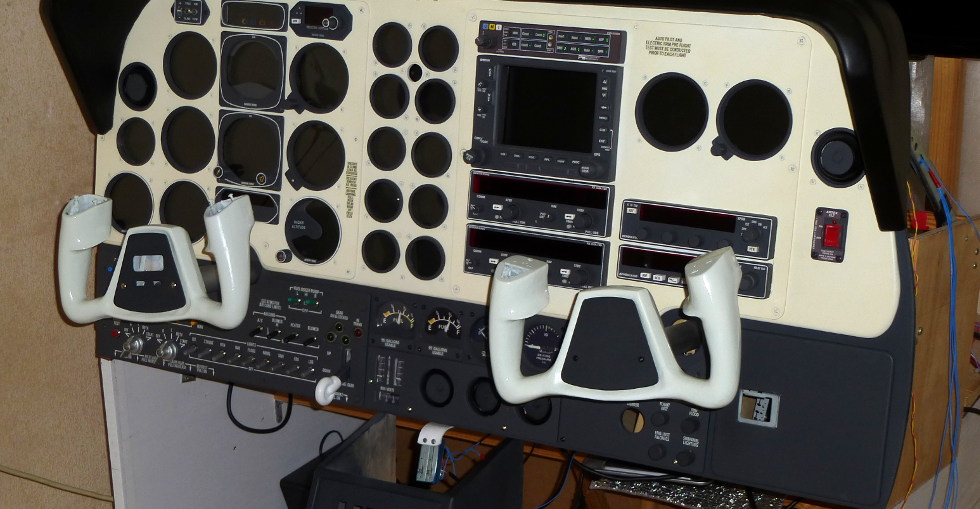

Baron-58 panel, Flight Controls

Yokes

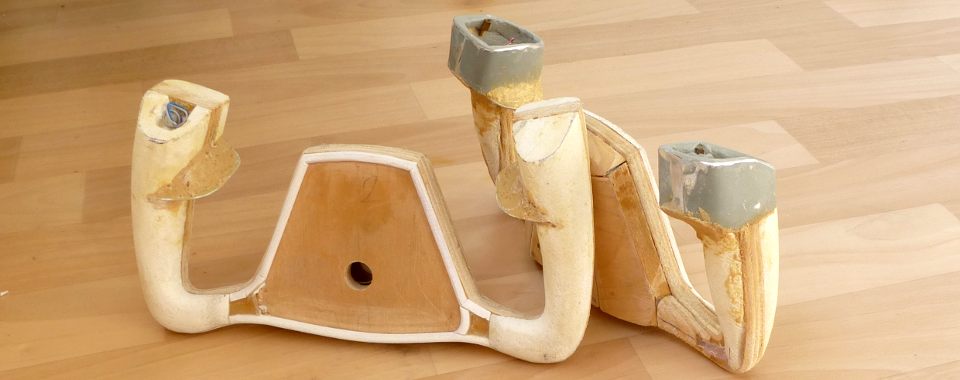

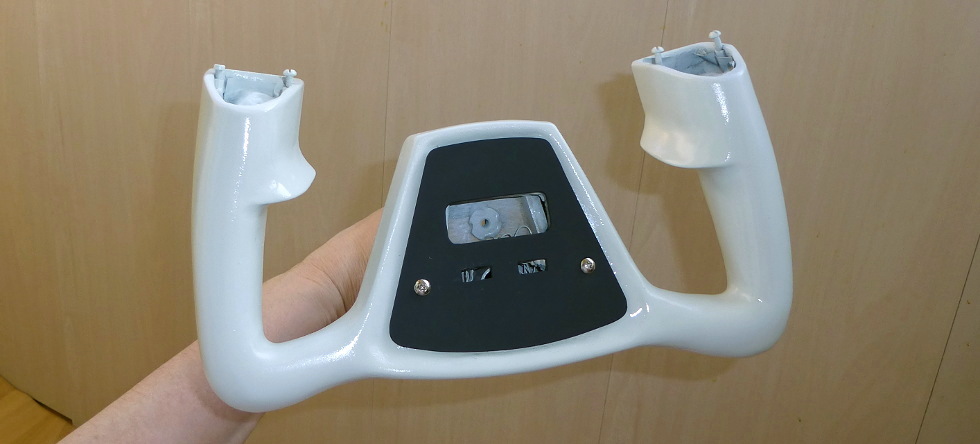

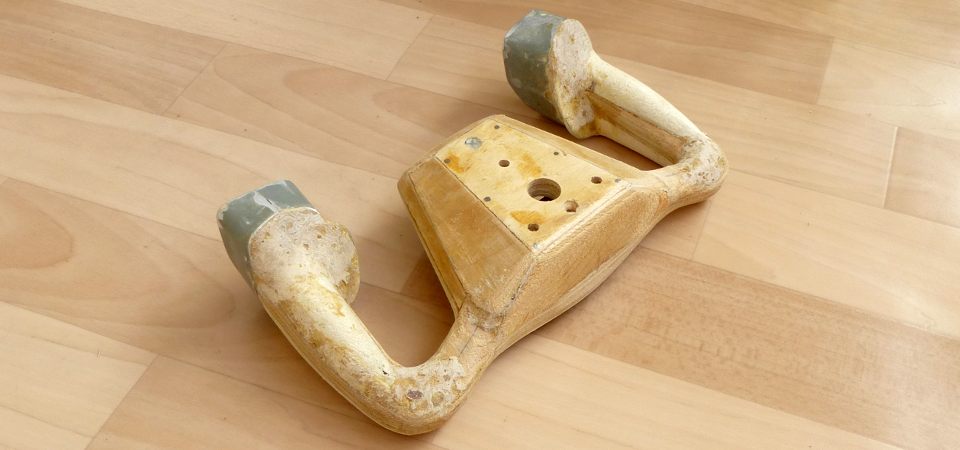

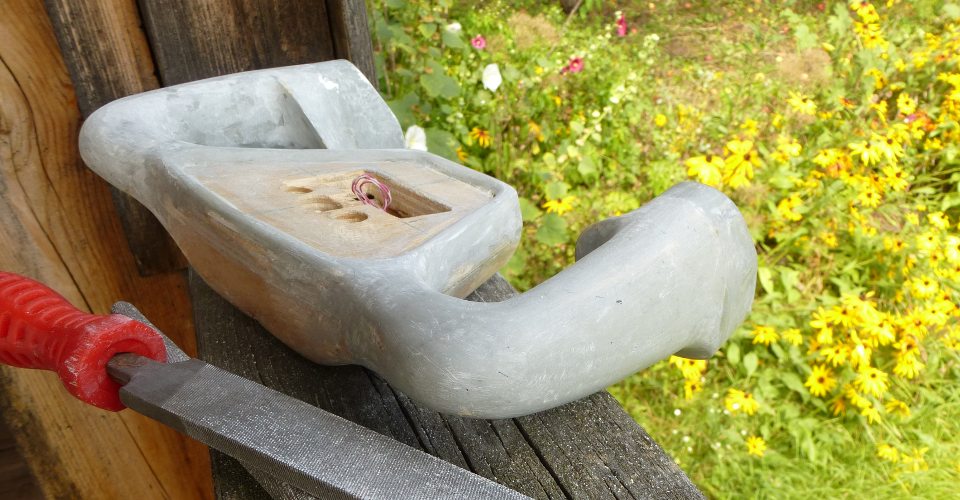

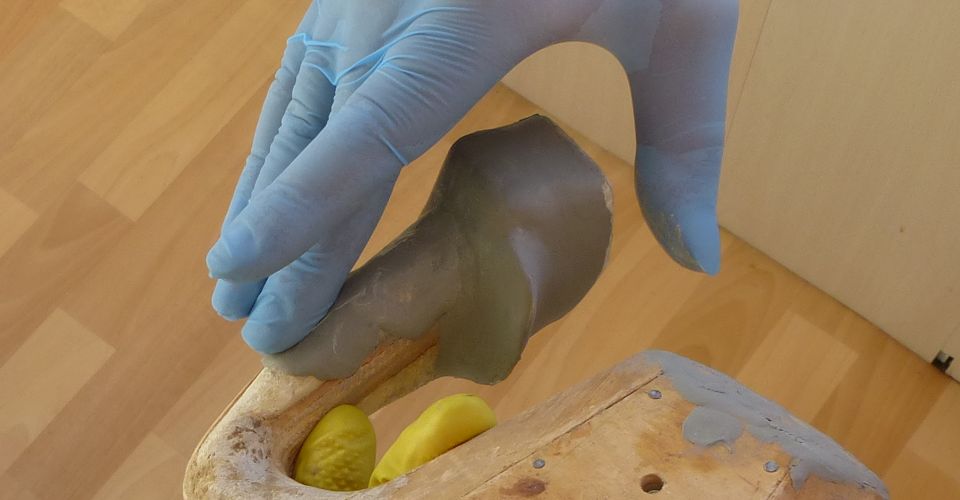

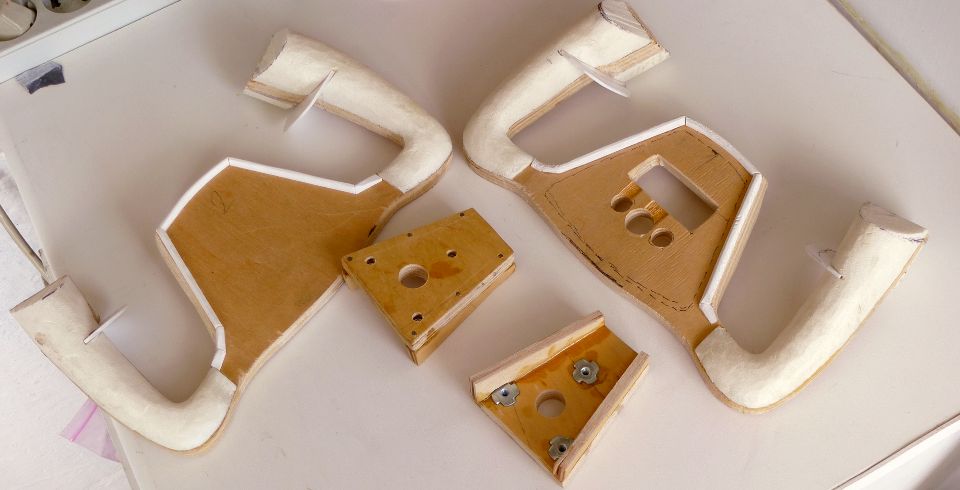

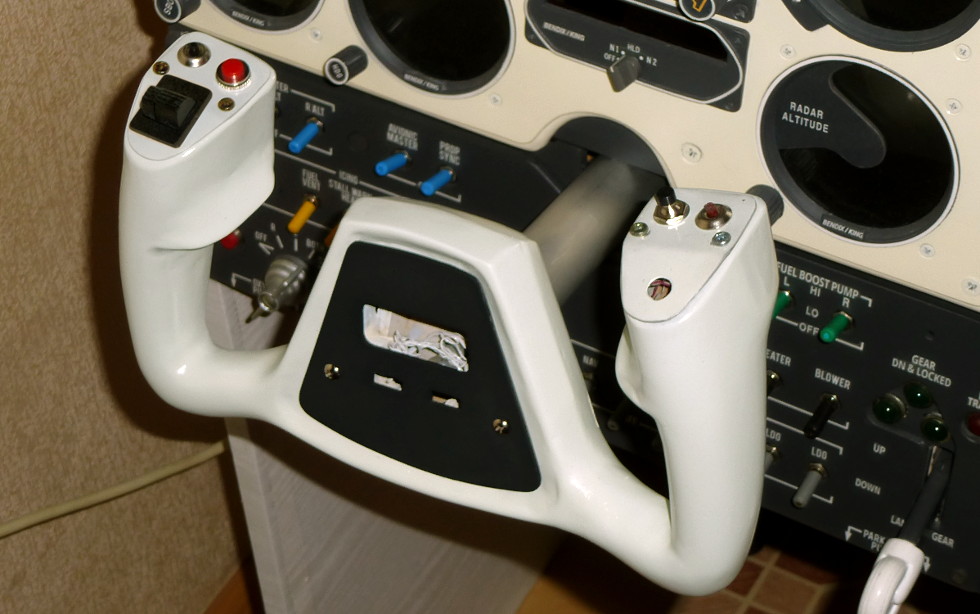

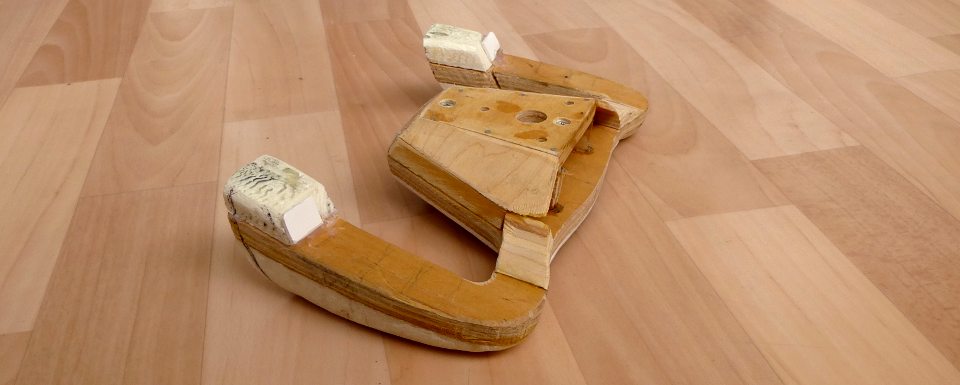

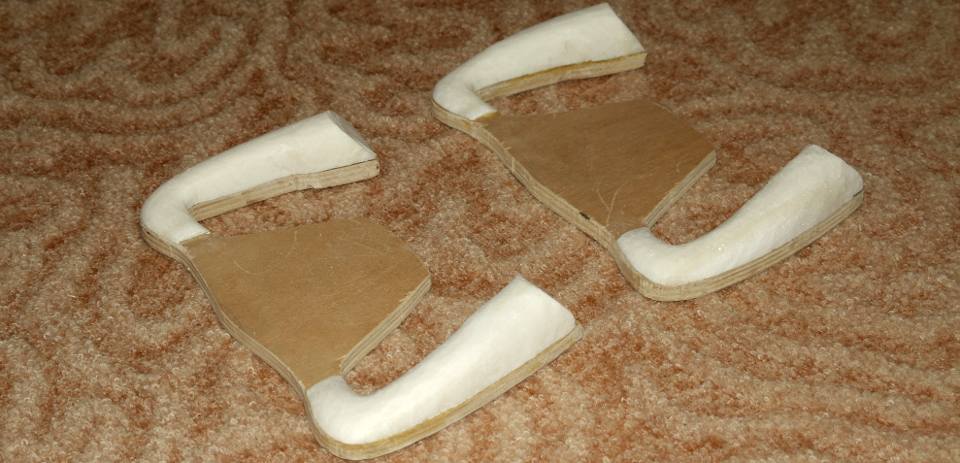

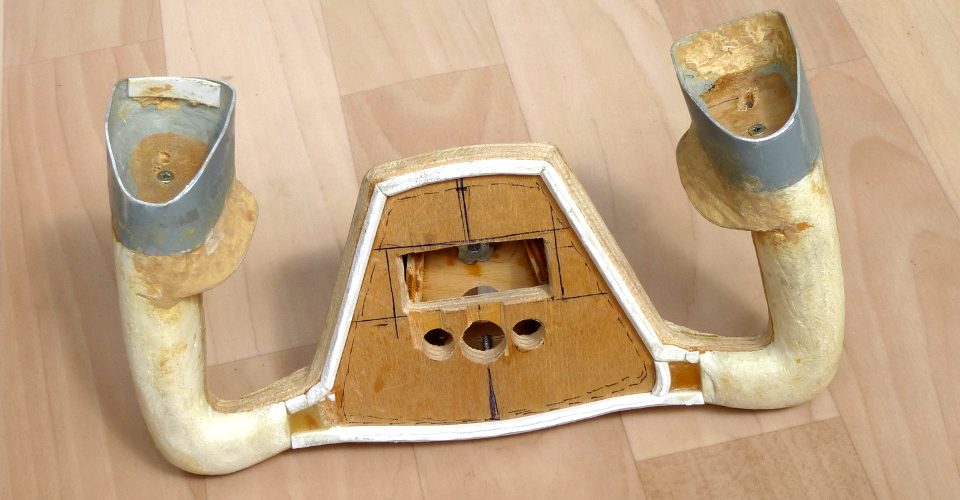

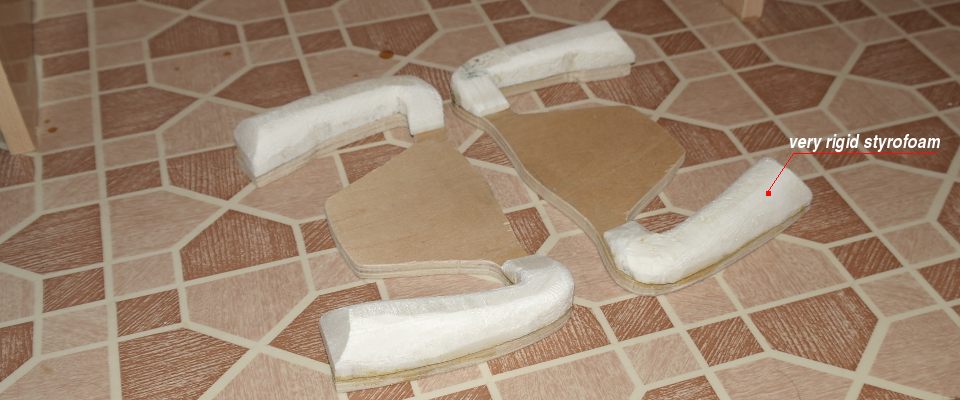

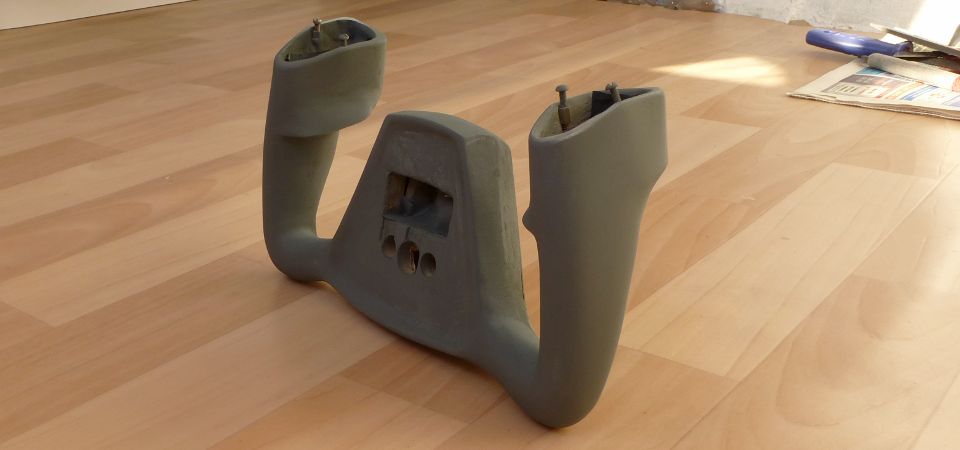

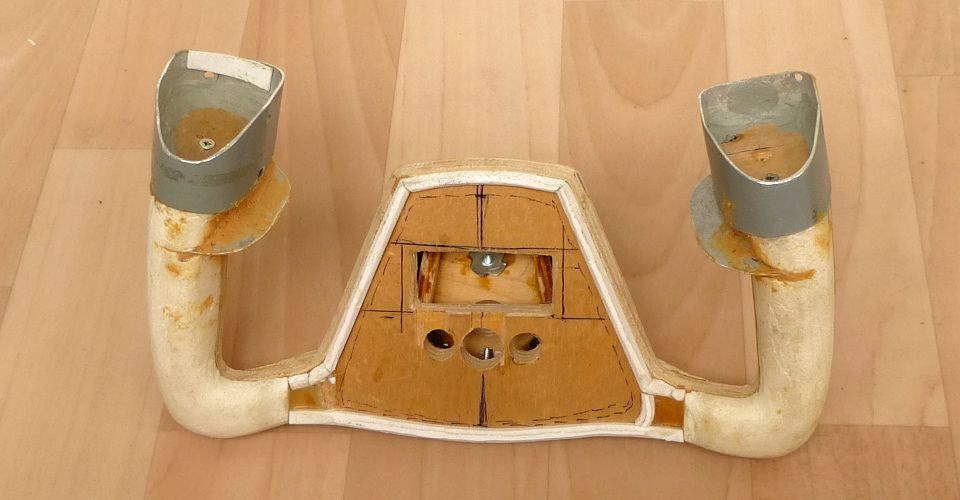

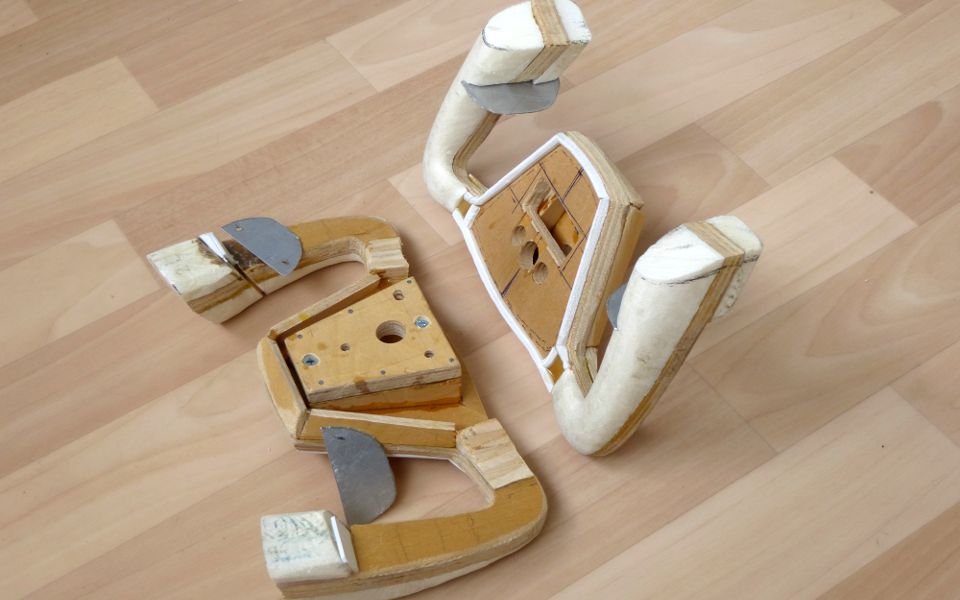

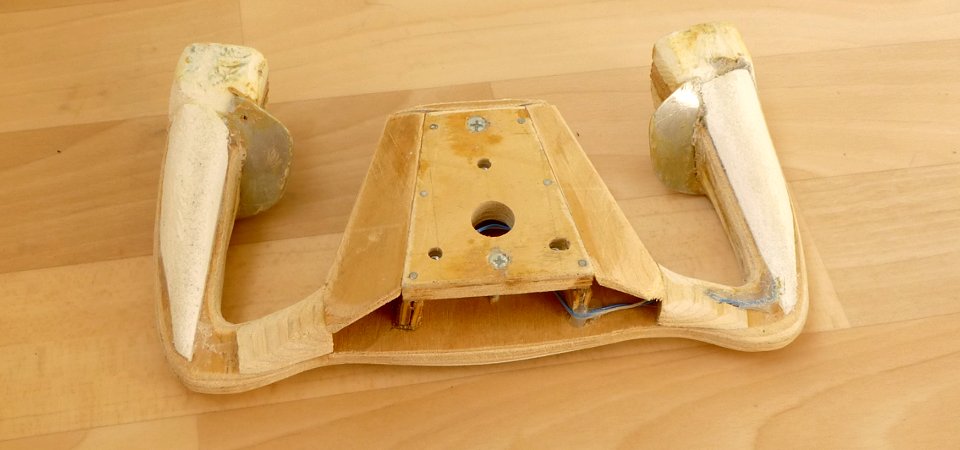

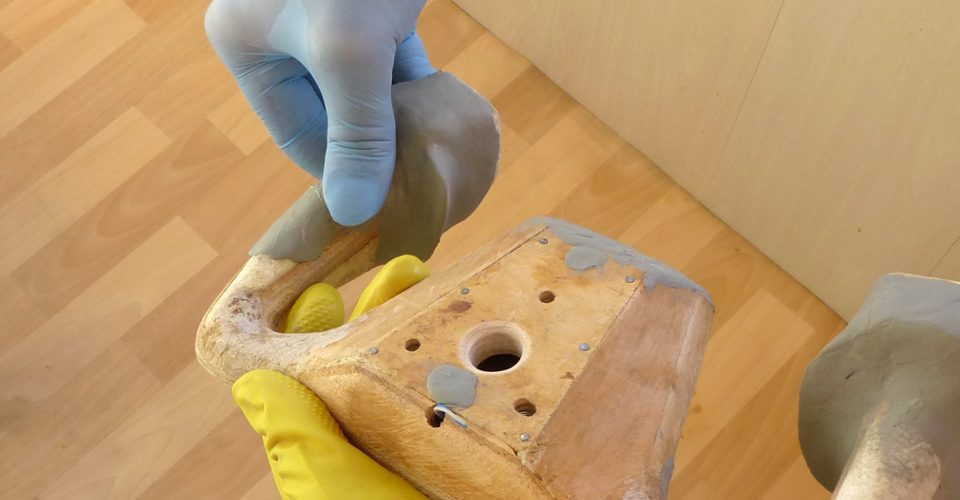

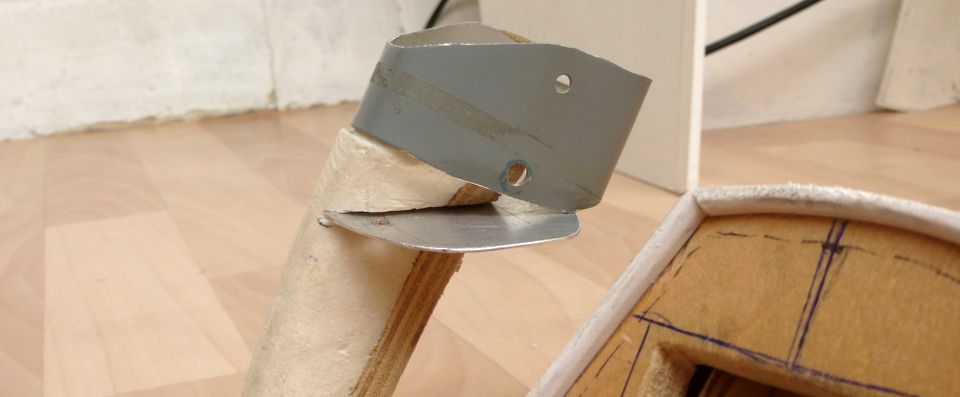

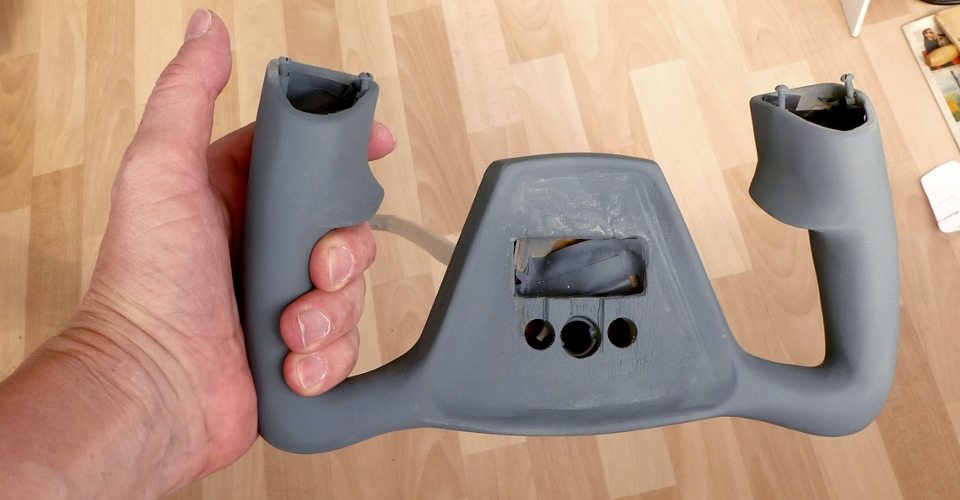

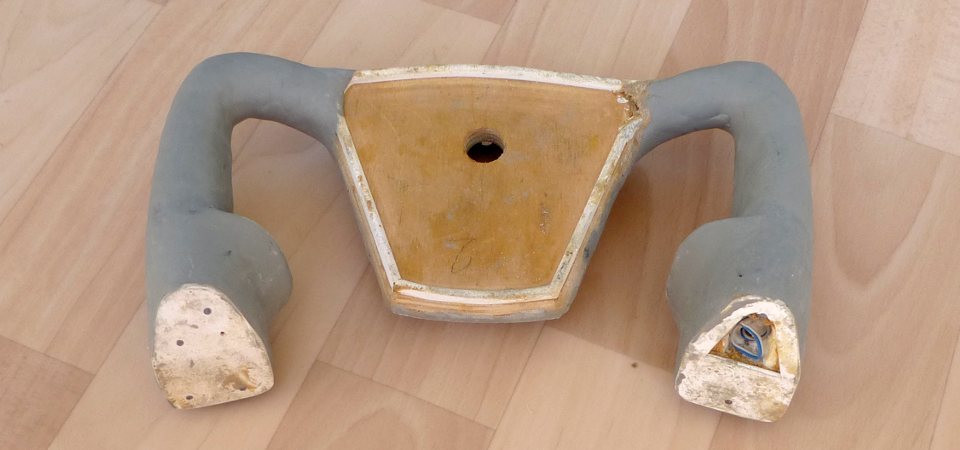

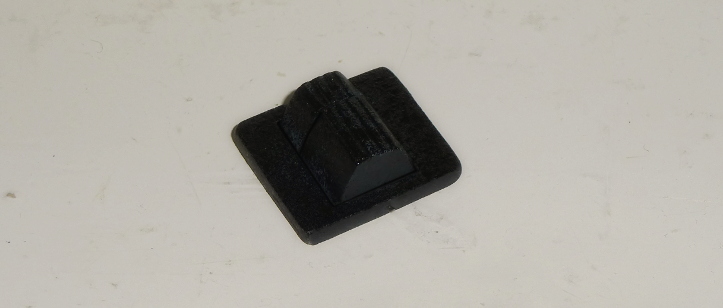

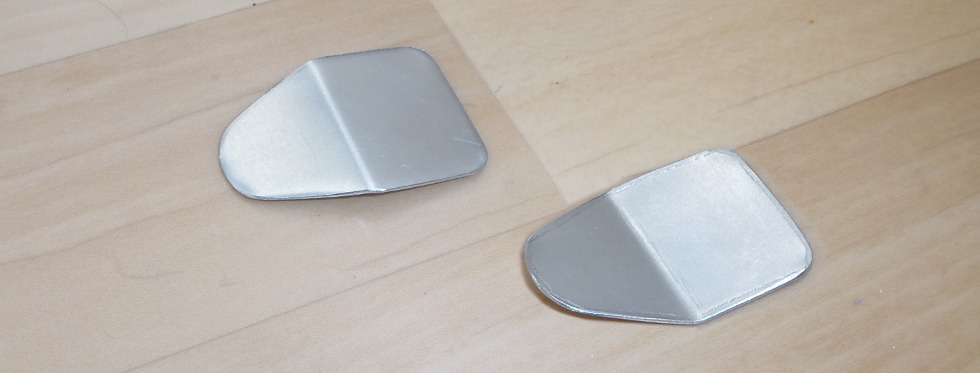

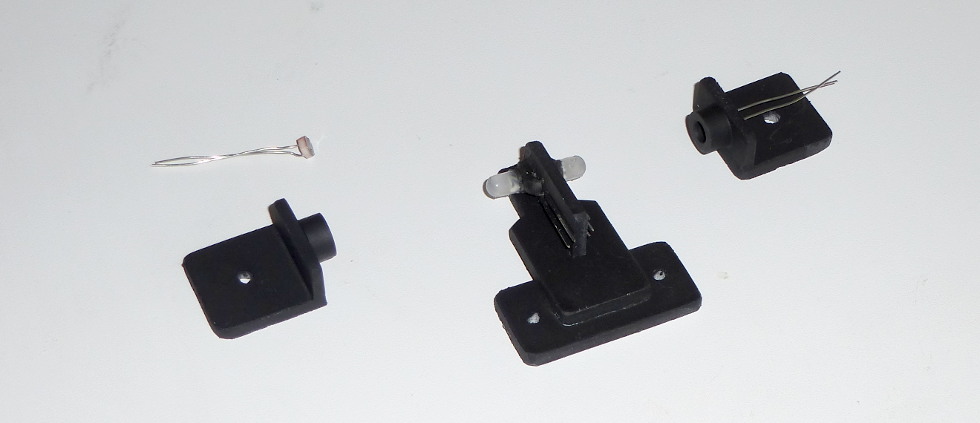

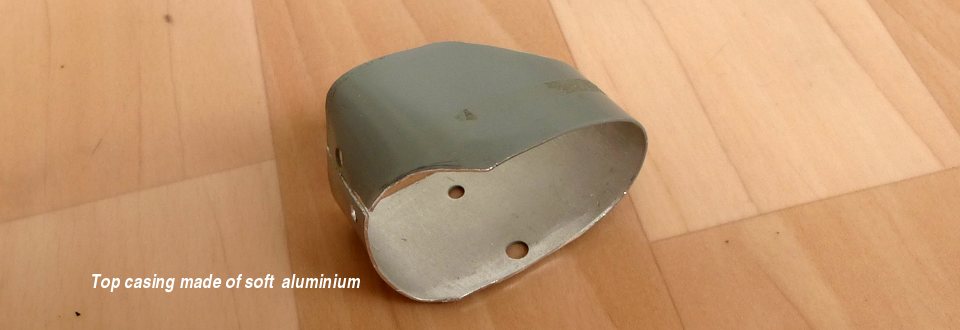

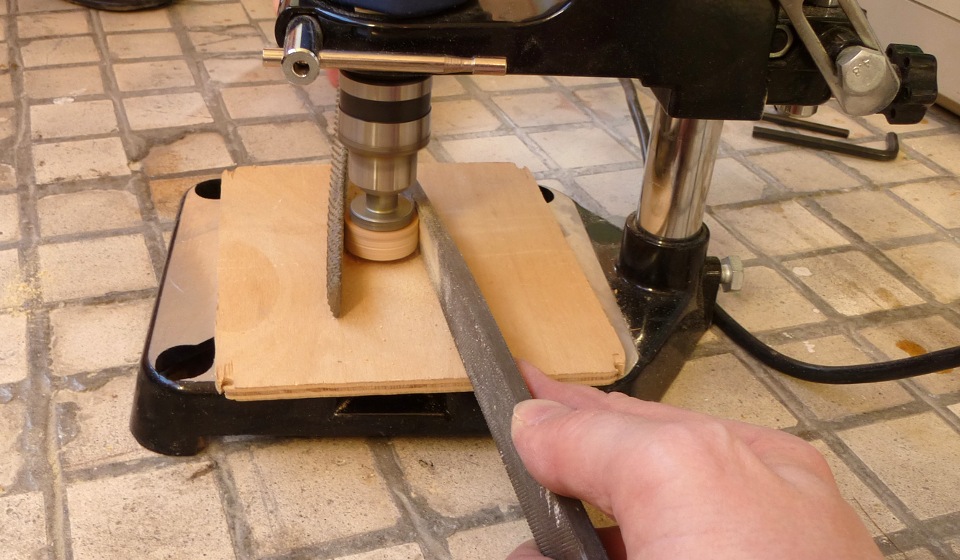

The 10-mm plywood is used as a basis for yokes. The pieces of plywood and very rigid styrofoam are glued to the base for shaping. Then the whole thing is covered by epoxy putty and sanded. After that the yoke is painted by primer, sanded again ( several times if needed). Finally, it is painted by the white aerosol.

b58 b58 b58 b58 b58 b58 b58

b58 b58 b58 b58 b58 b58 b58

b58 b58 b58 b58 b58 b58 b58

b58 b58 b58 b58 b58 b58 Right Side Yoke

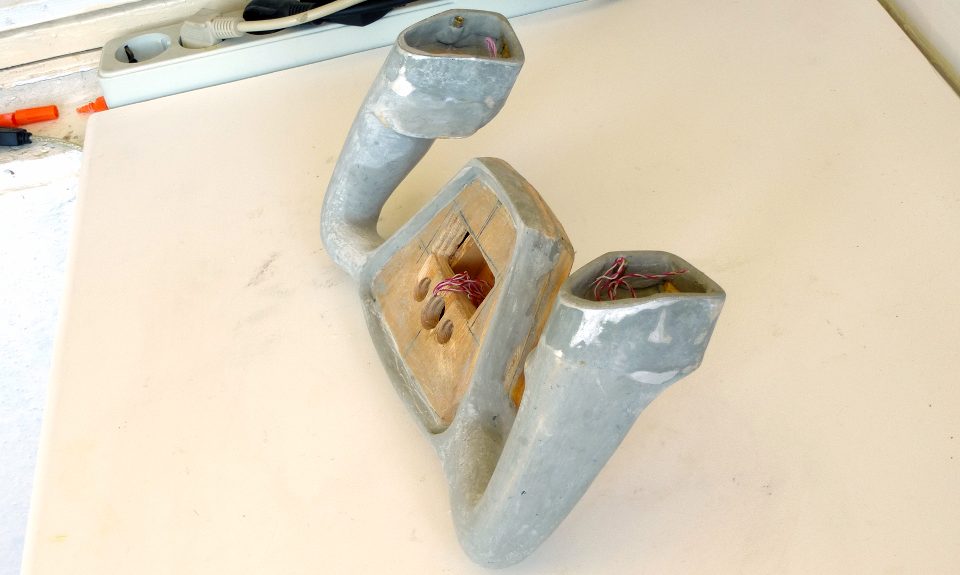

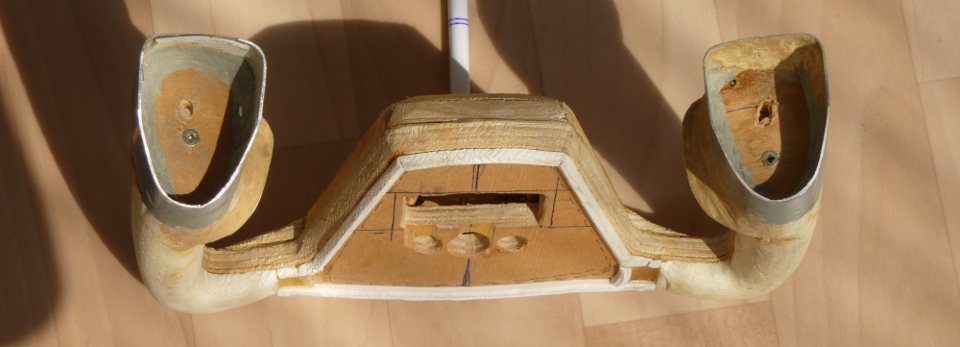

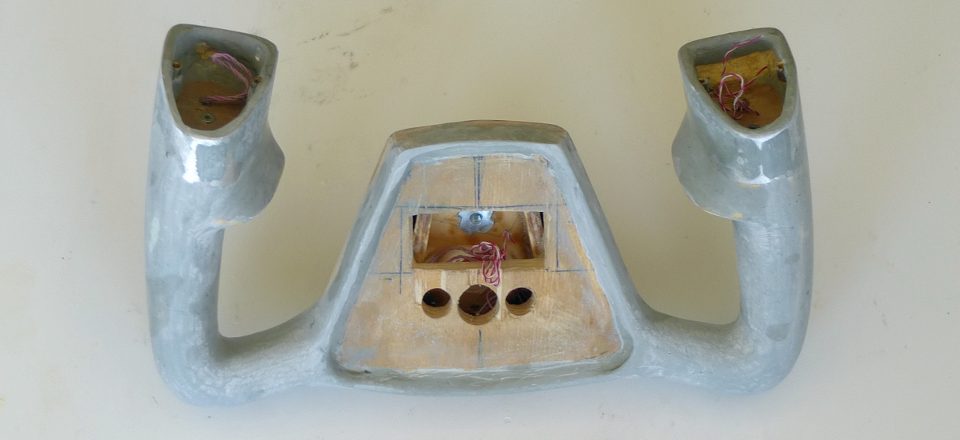

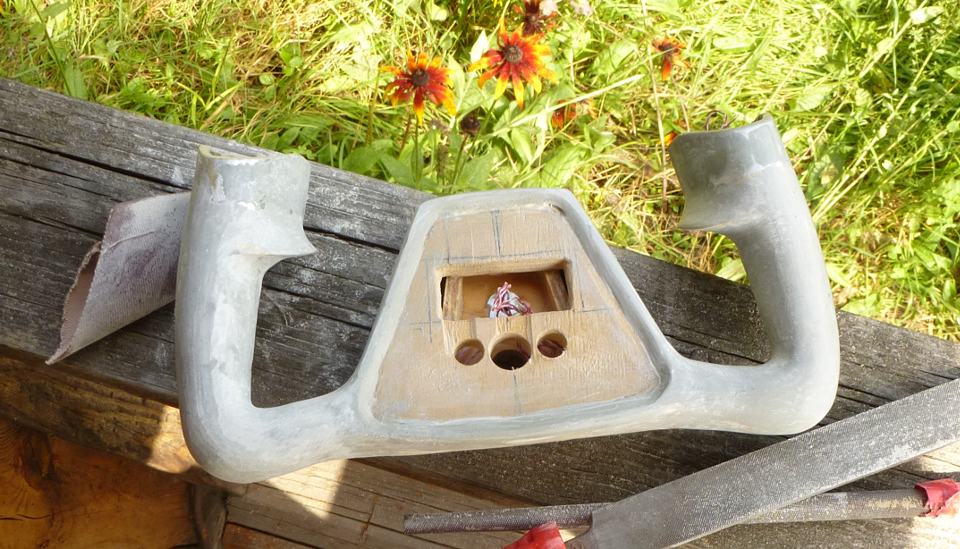

b58 Covering by fine epoxy coating Covering by fine epoxy putty b58 Grinding/polishing b58 b58

b58 b58 b58 b58 b58 b58

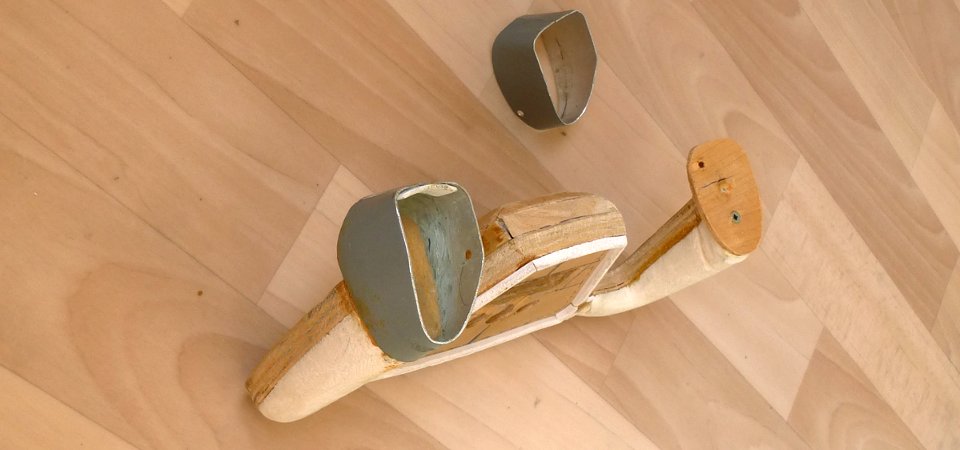

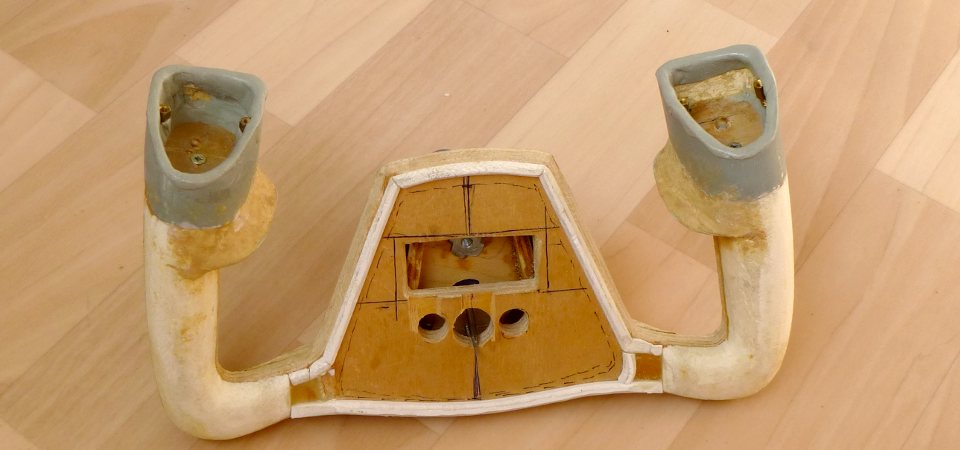

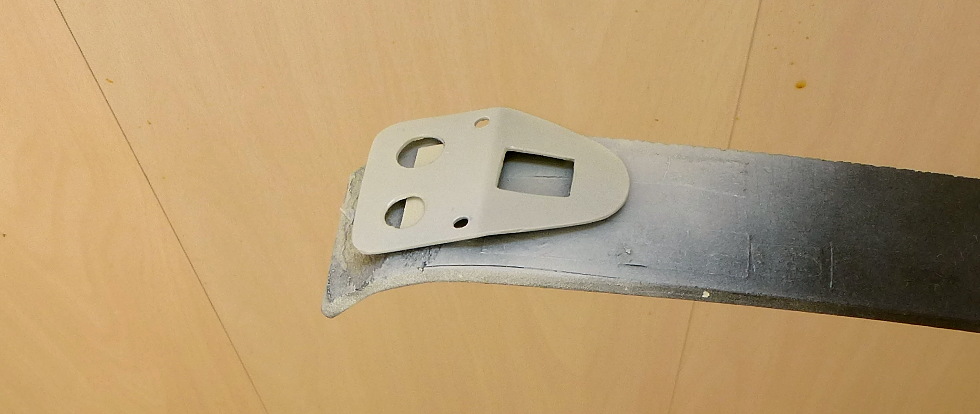

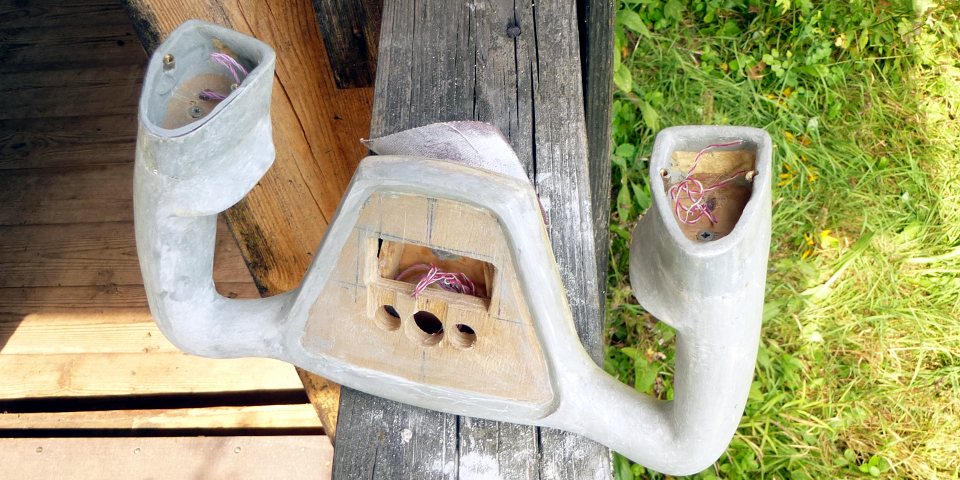

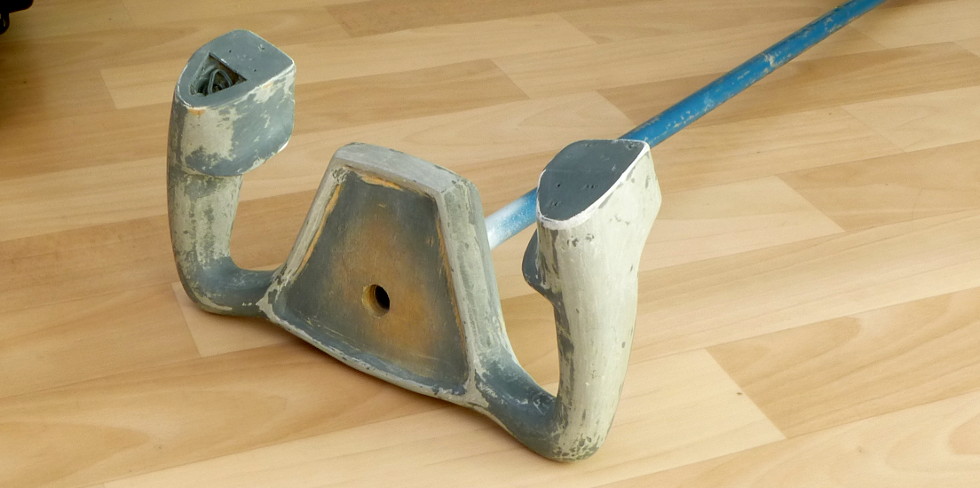

b58 b58 After the first covering by gray primer (aerosol) The first layer of primer (not sanded yet) After several coating and sanding b58 b58

b58 b58 b58 b58 b58 b58 b58

b58 b58 b58 b58 b58 b58 b58

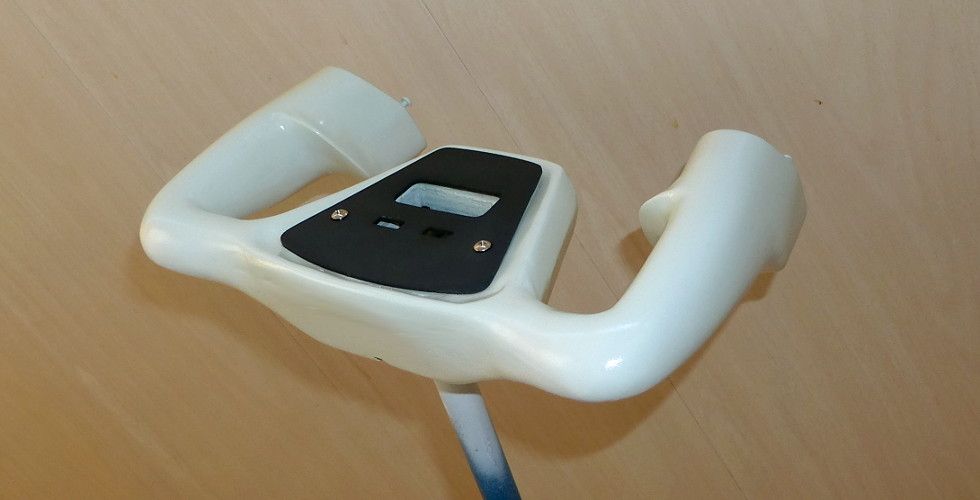

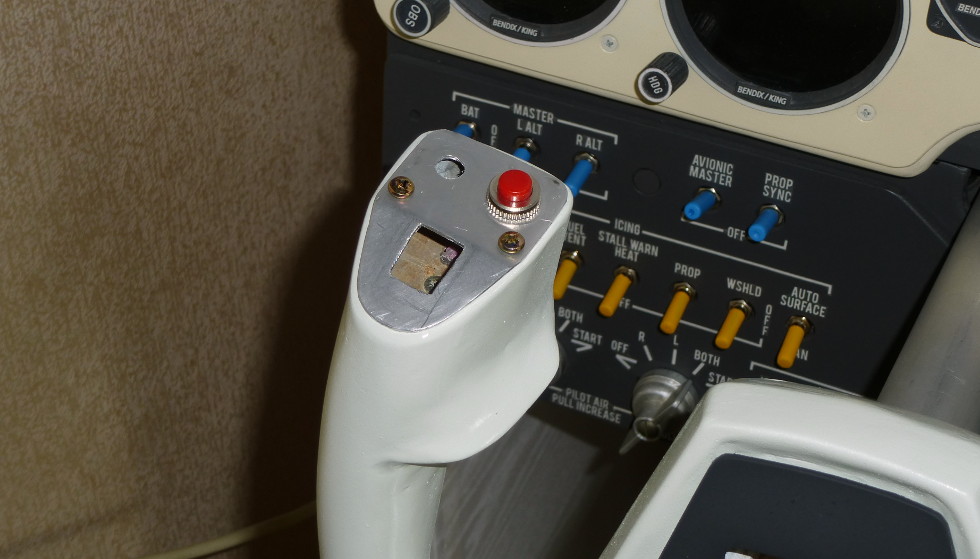

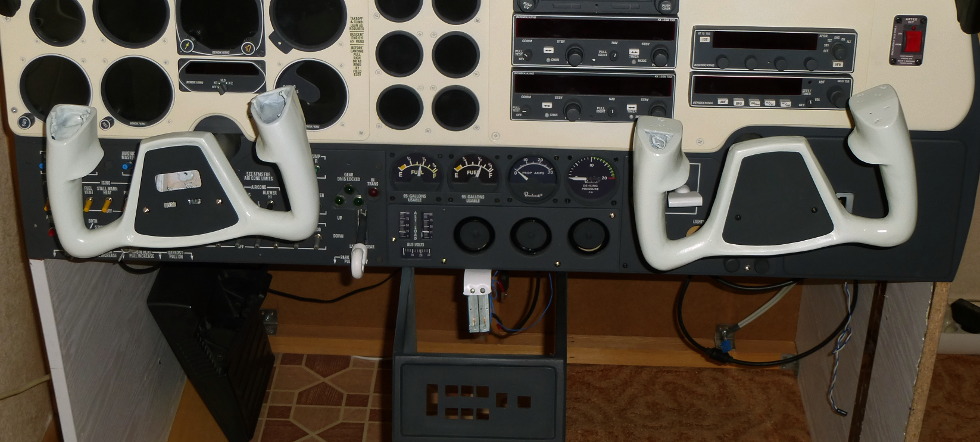

b58 b58 b58 b58 b58 b58 B58 Yoke



b58 b58 b58 b58 b58 b58 b58

b58 b58 b58 b58 b58 b58 b58



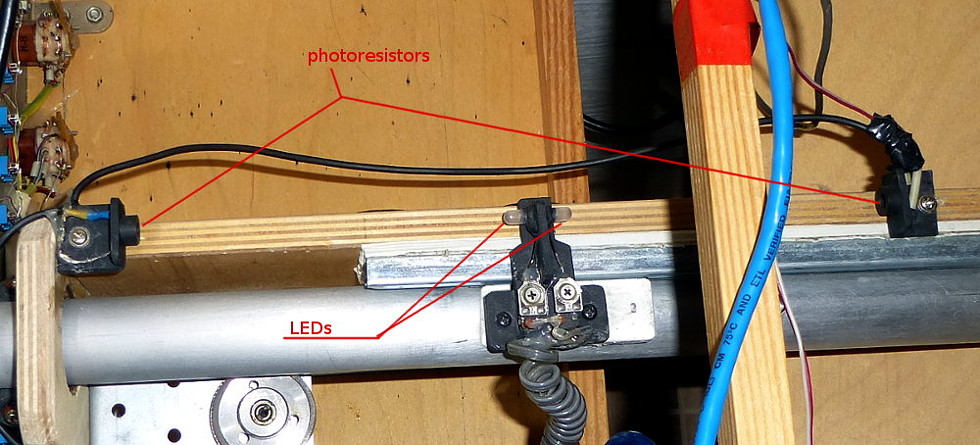

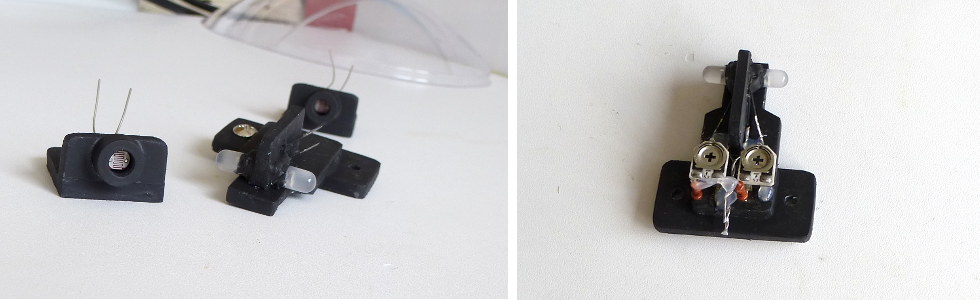

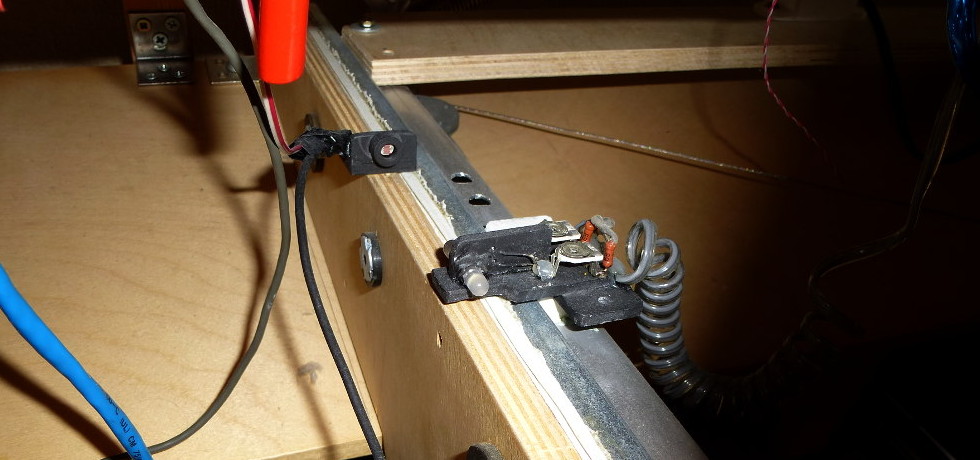

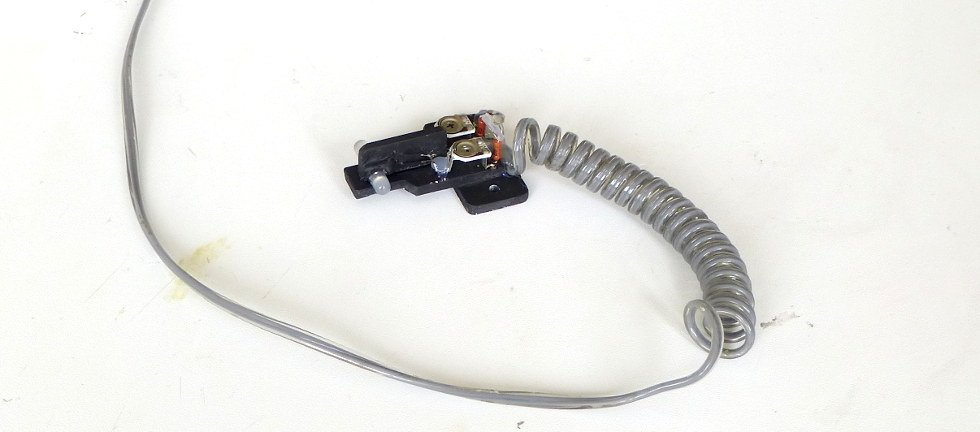

Mechanics

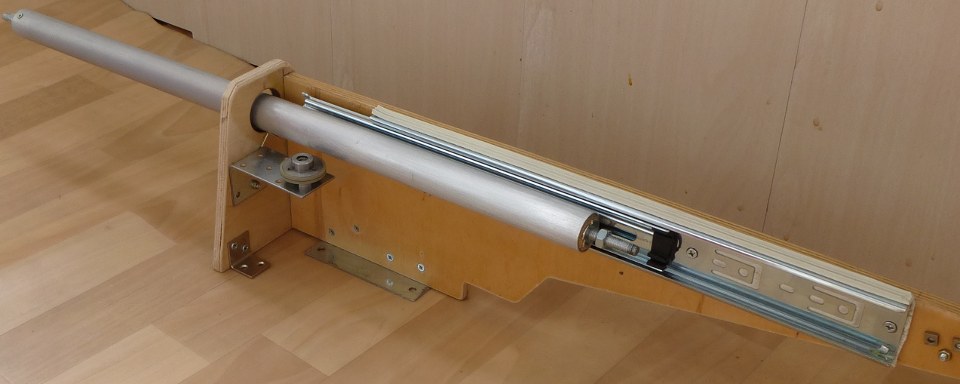

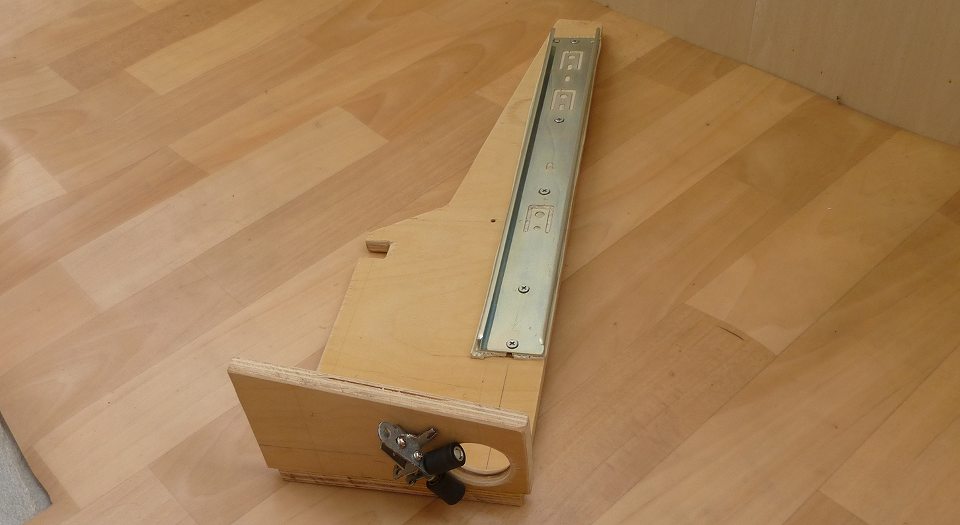

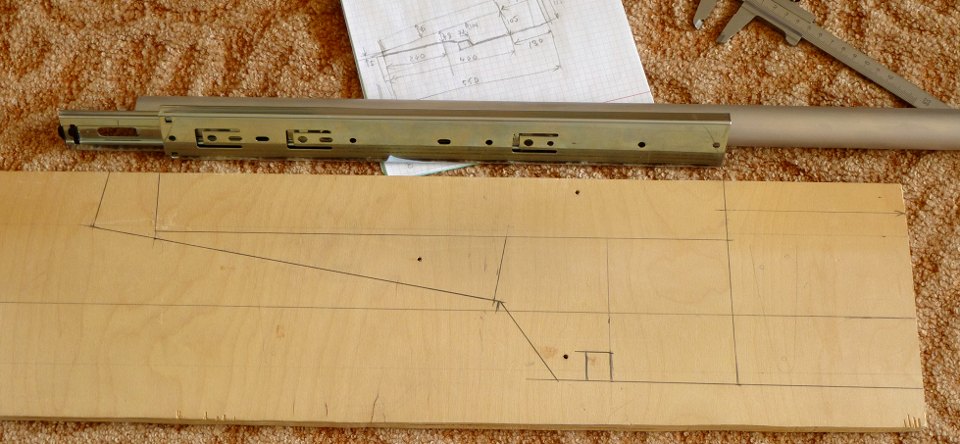

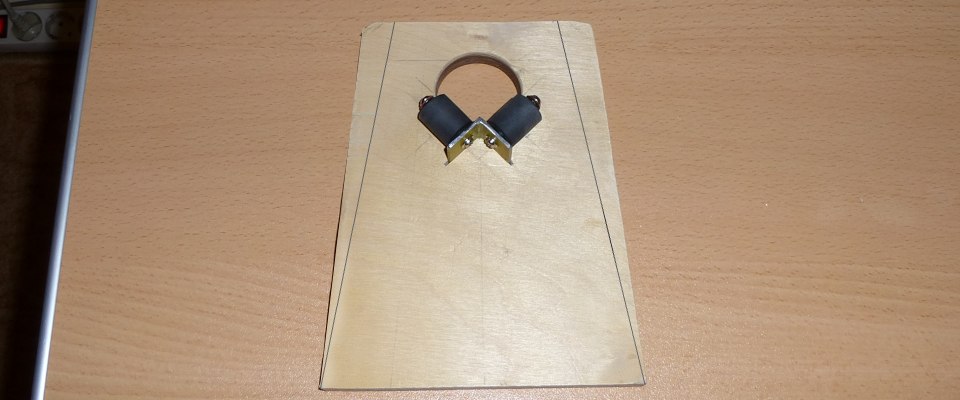

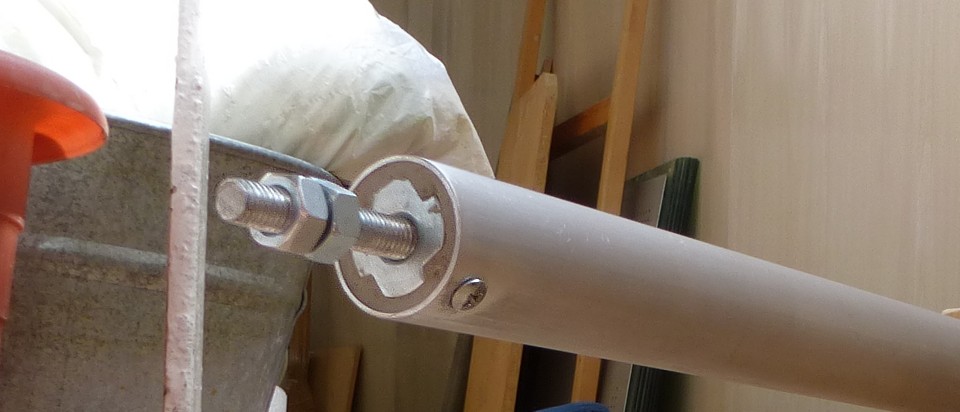

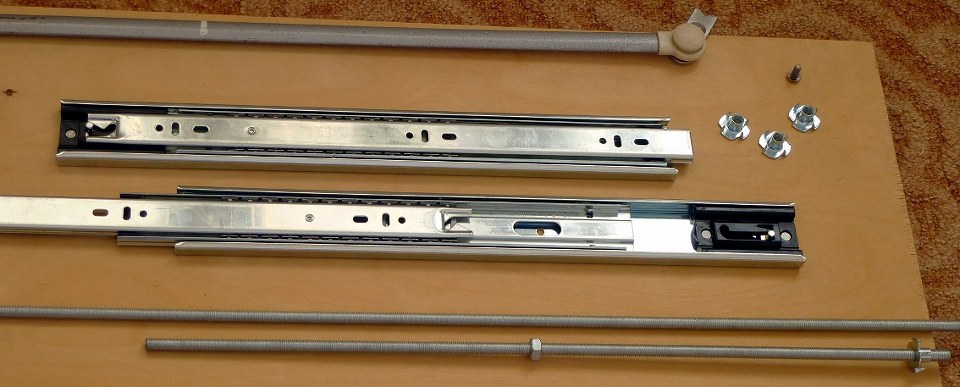

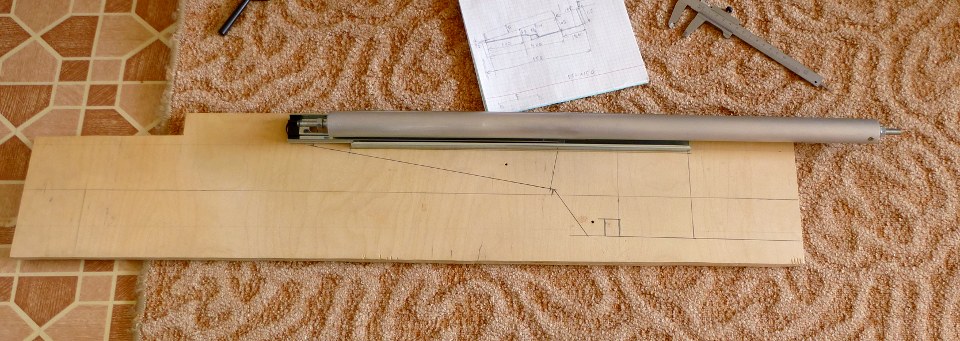

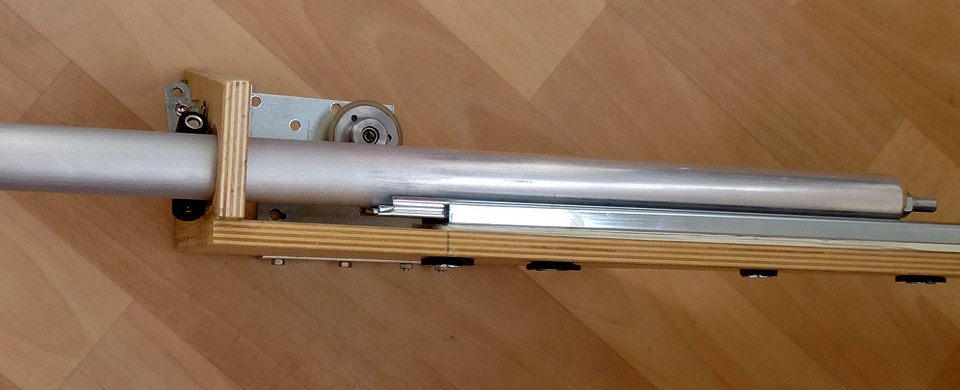

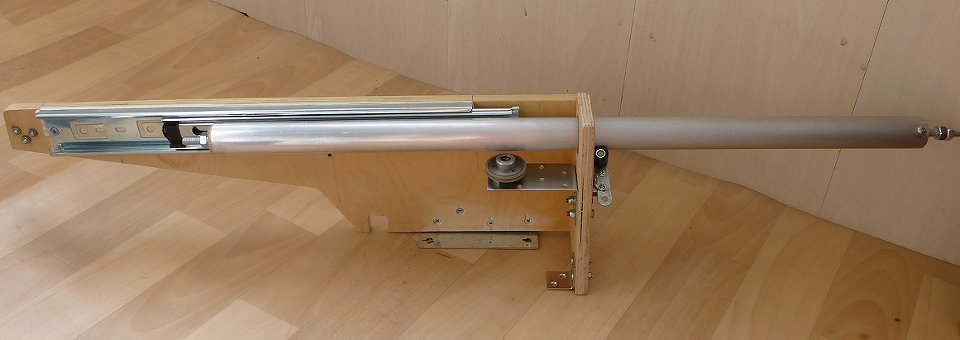

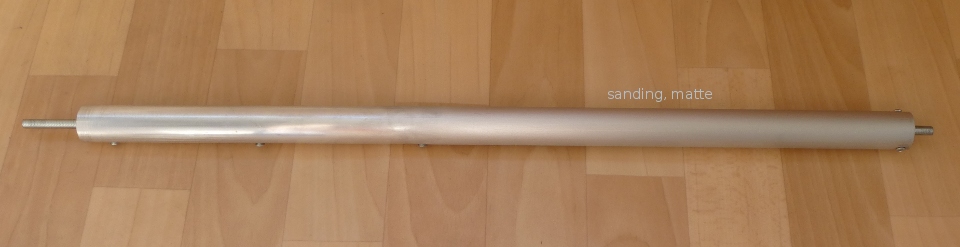

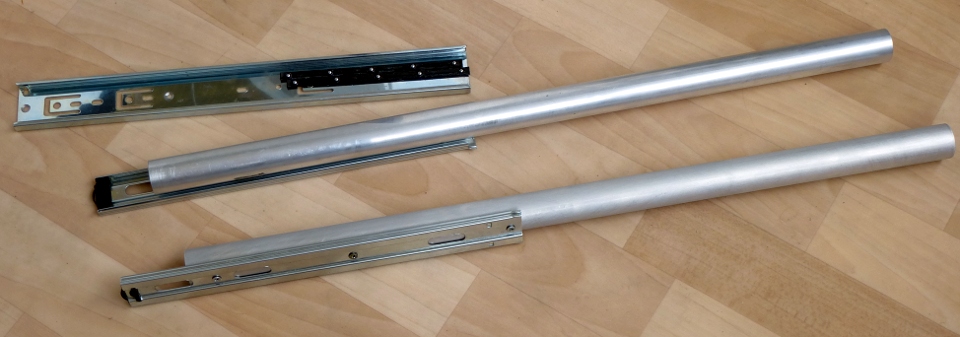

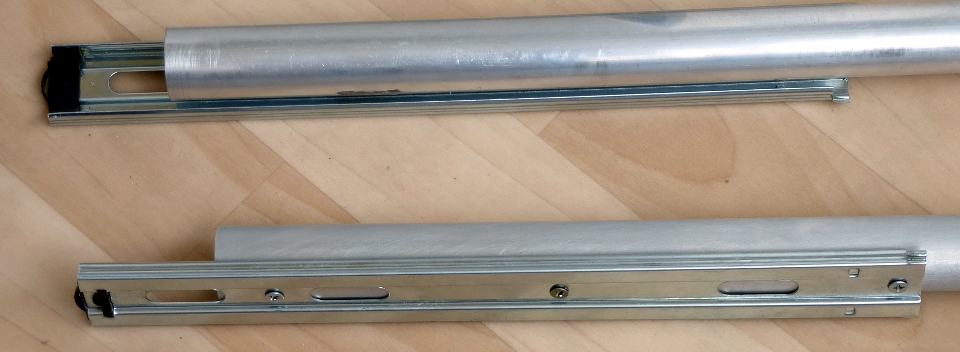

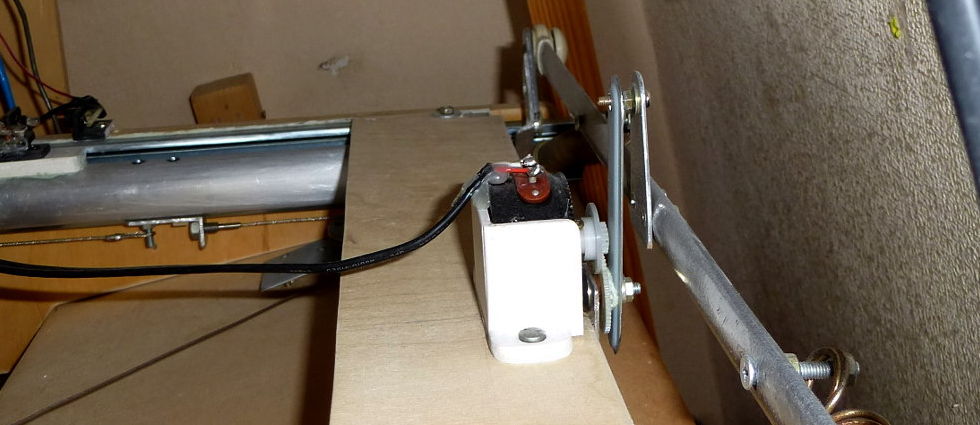

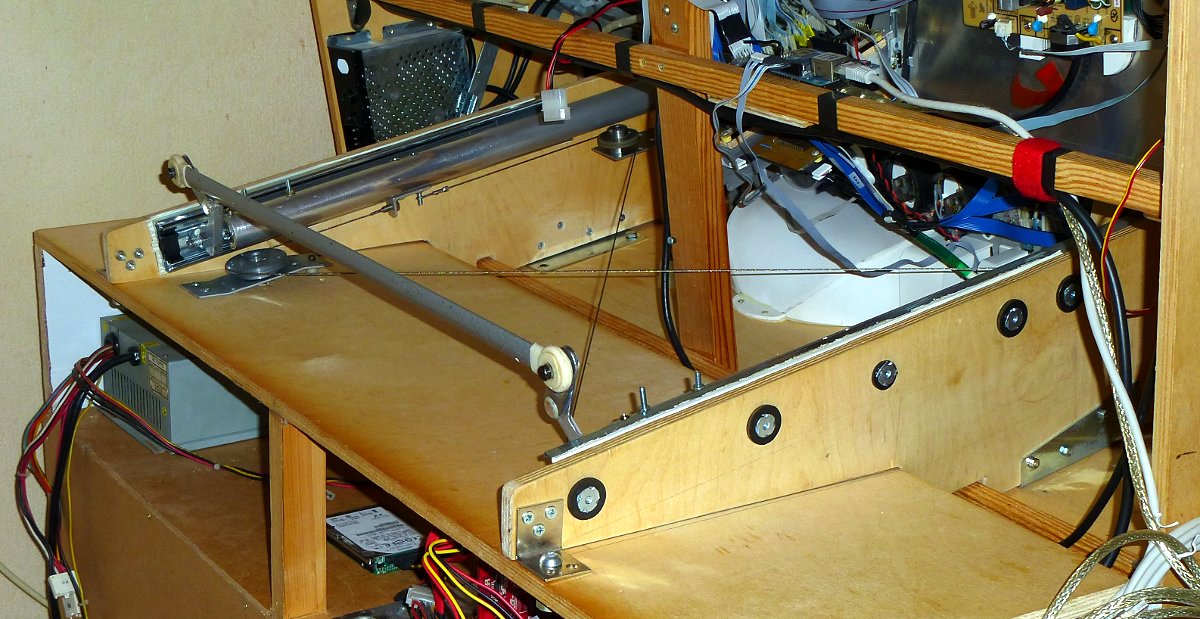

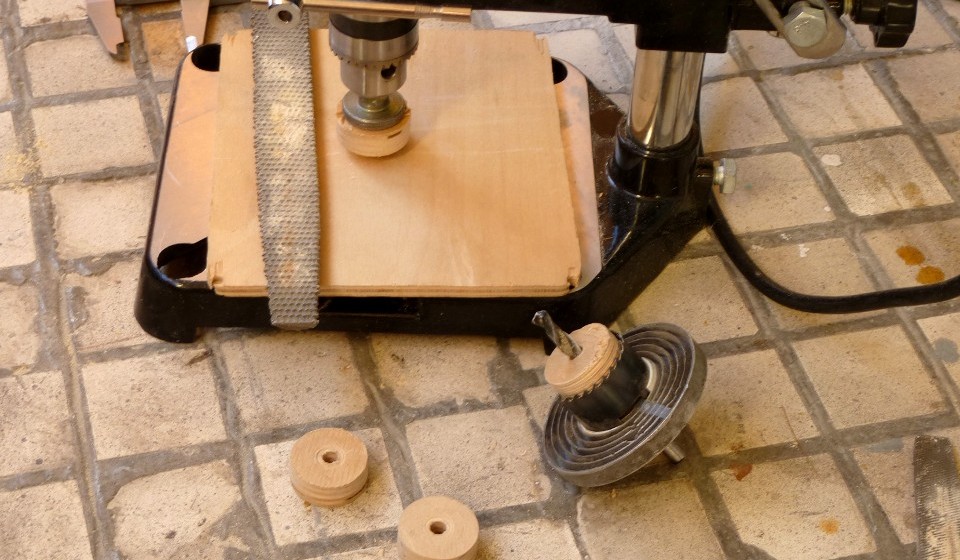

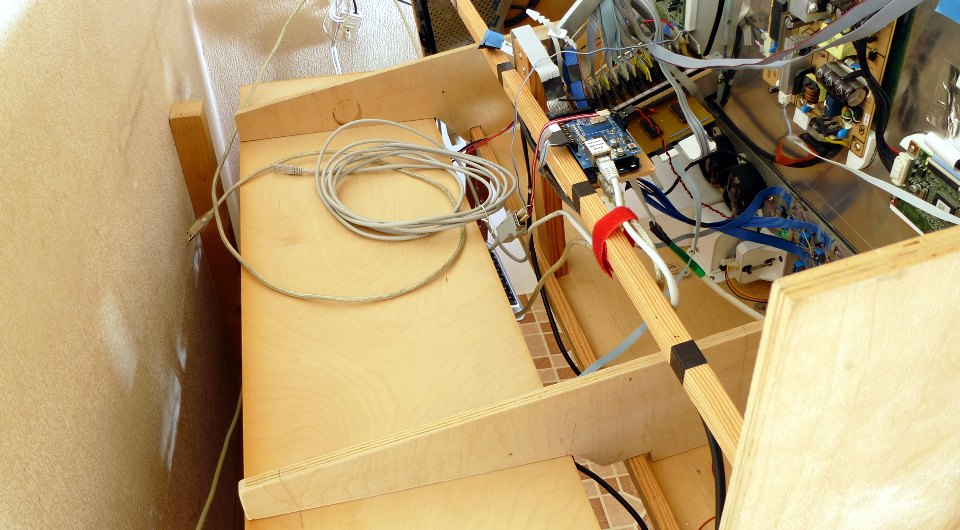

Control mechanism consist of two aluminium tubes fastened to the rails (tubes are not rotating). The rails are installed to the base through the rubber gaskets and rubber bushings for bolts. Additionally, tubes are supported by the two rollers each (rubber-coated).

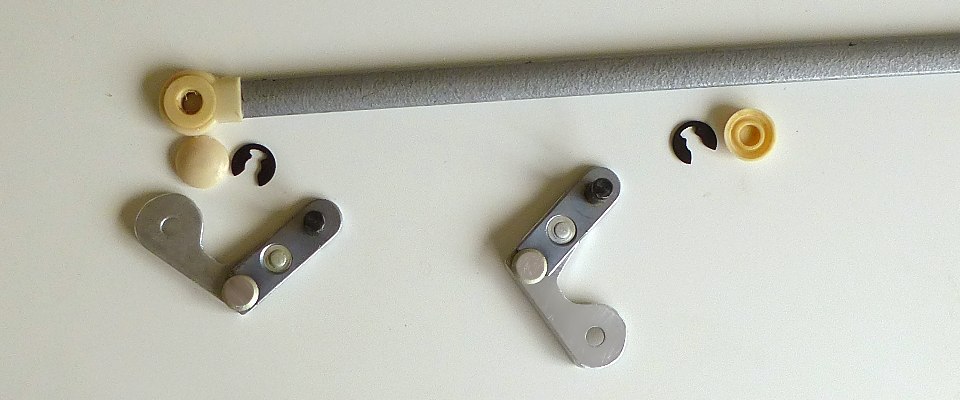

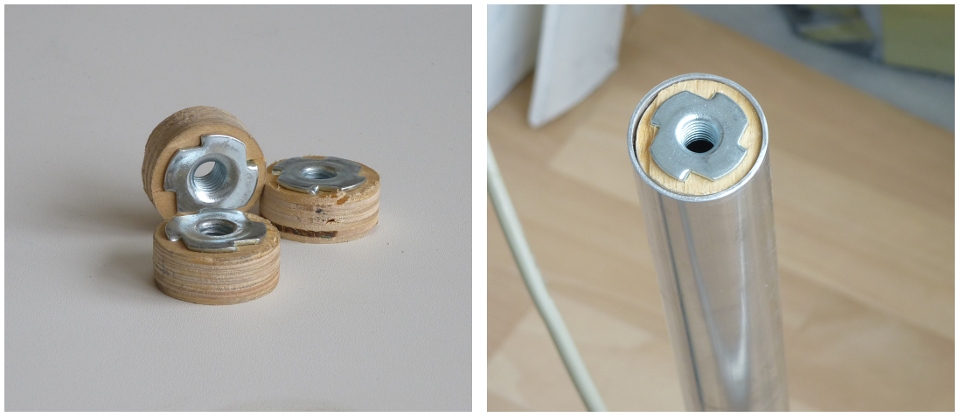

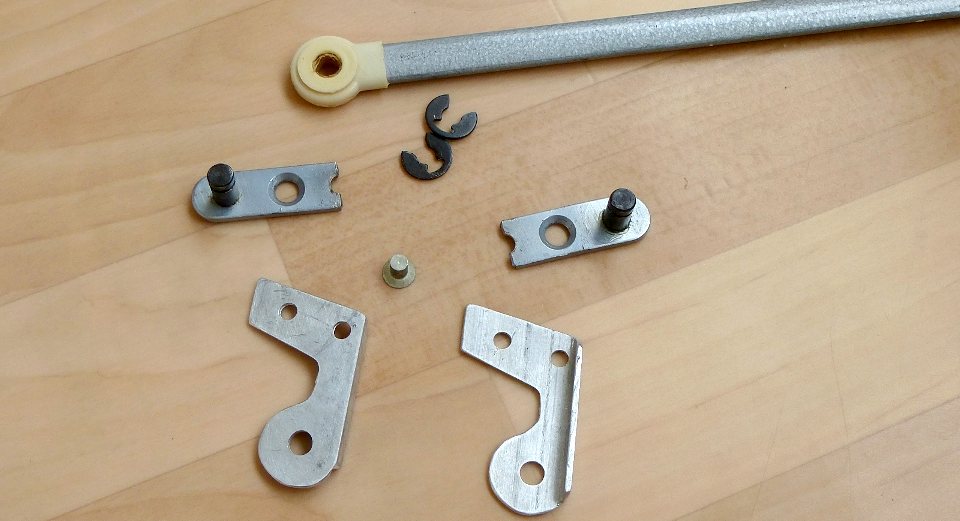

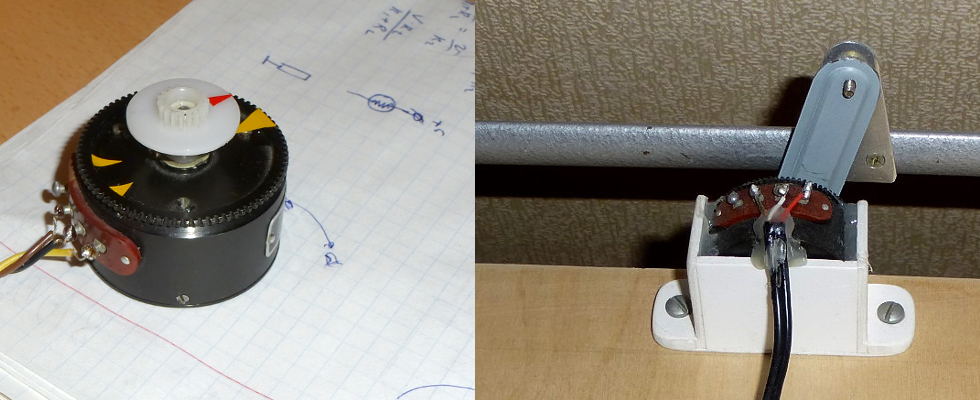

The long threaded shaft inside the each tube serves as roll axis and they are linked by the rigid rod through a lever arms (the full angle of rotation is about 130°). The forth-back movement is limited to about 30 cm (1 foot). The whole control unit can be mounted-dismantled in 10 minutes.

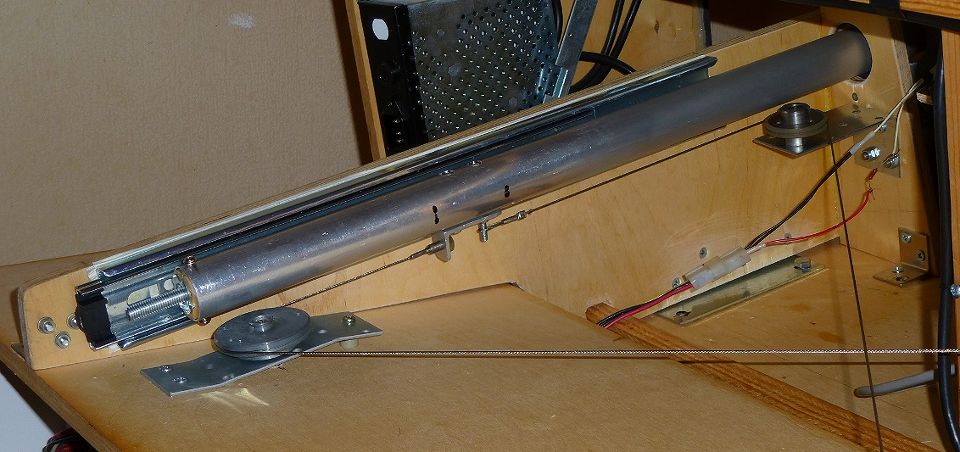

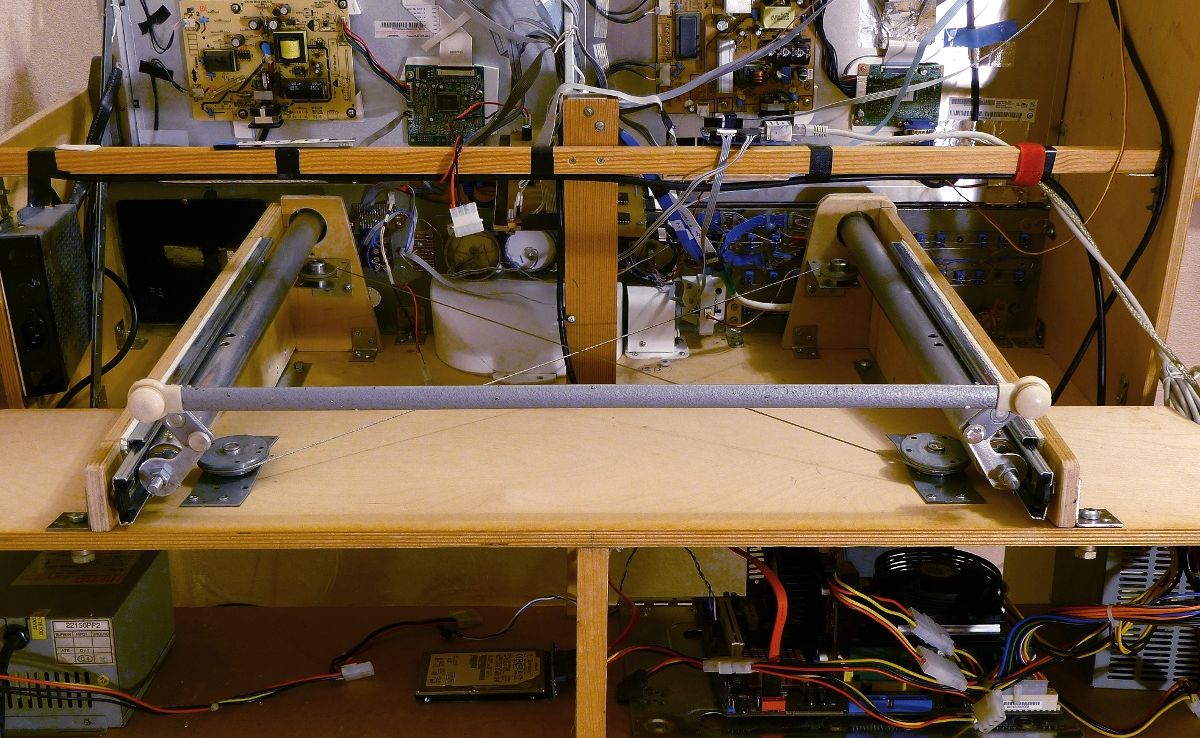

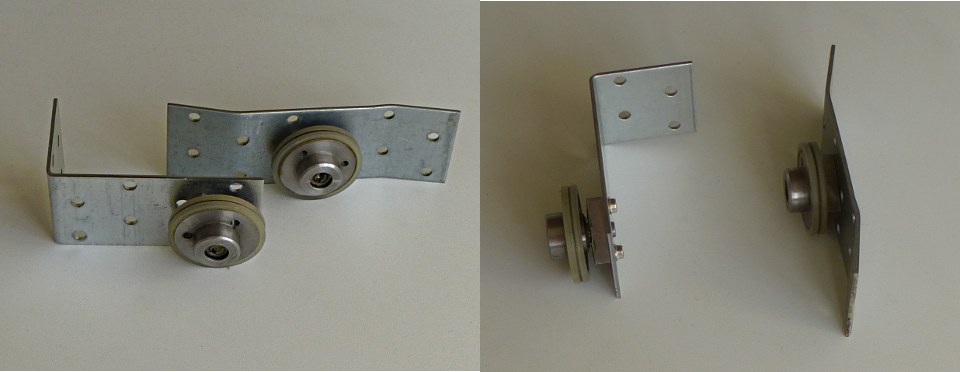

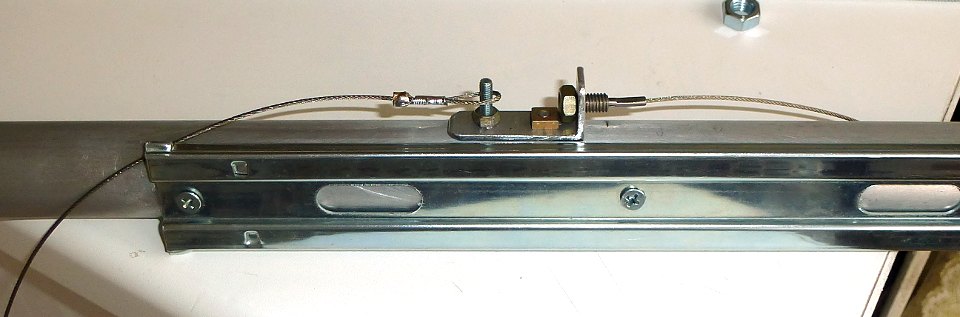

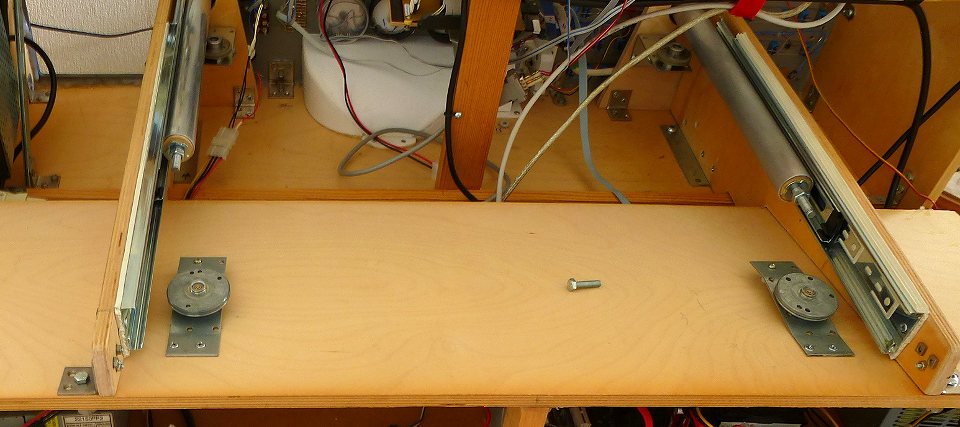

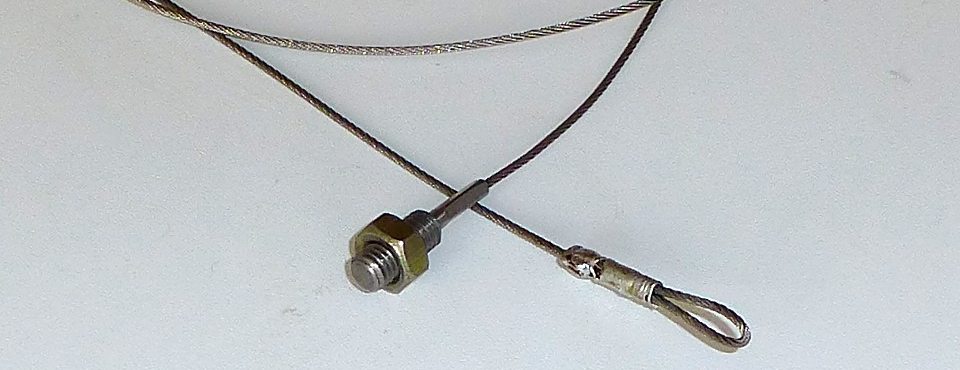

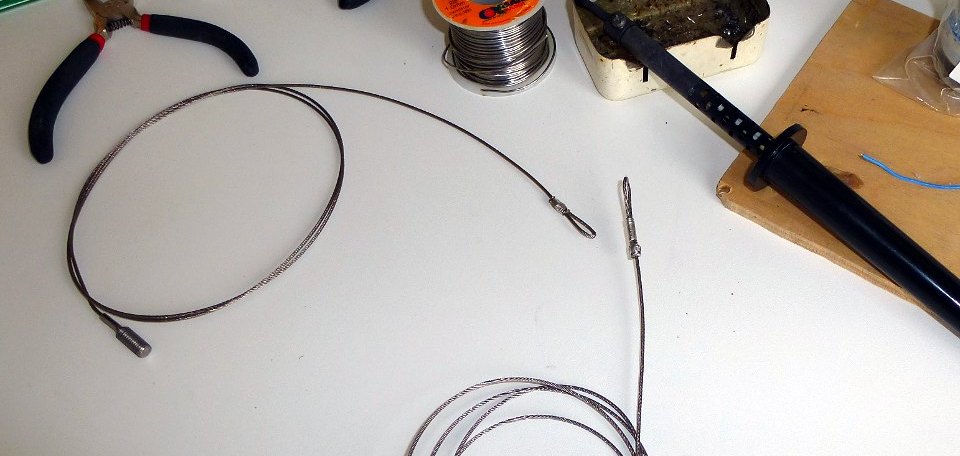

Each of the control units is fixing in place separately, and then they are linked crosswise by two steel cables through a pulleys. Both cables has adjustable tension mechanism. This construction provides a very smooth movement, and perfectly conveys the force to the second yoke.

Albeit it is simple, this is very reliable construction. Because of vertical rails positioning and two support rollers just before the panel hole It withstands quite a big vertical loads, and practically has no backlash.


b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img



b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img



b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img



b58img b58img b58img b58img b58img b58img

b58img b58img b58img b58img b58img b58img






b58imgb58img

Video:

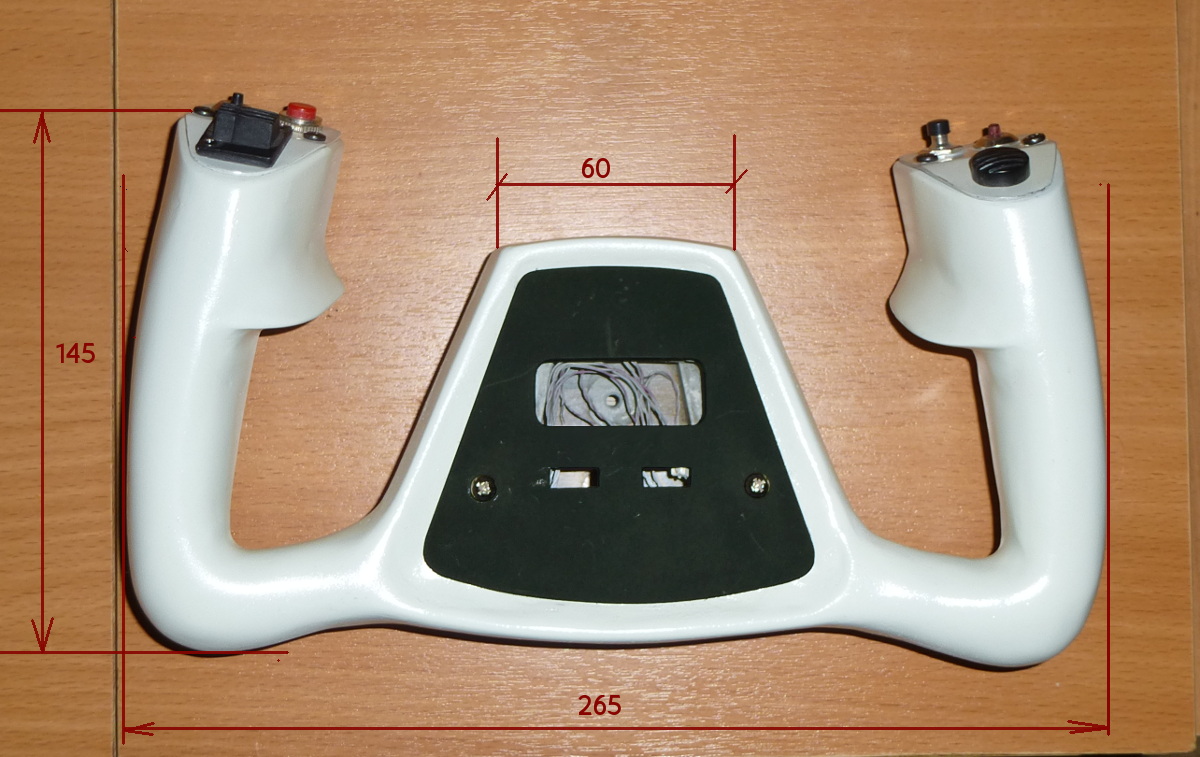

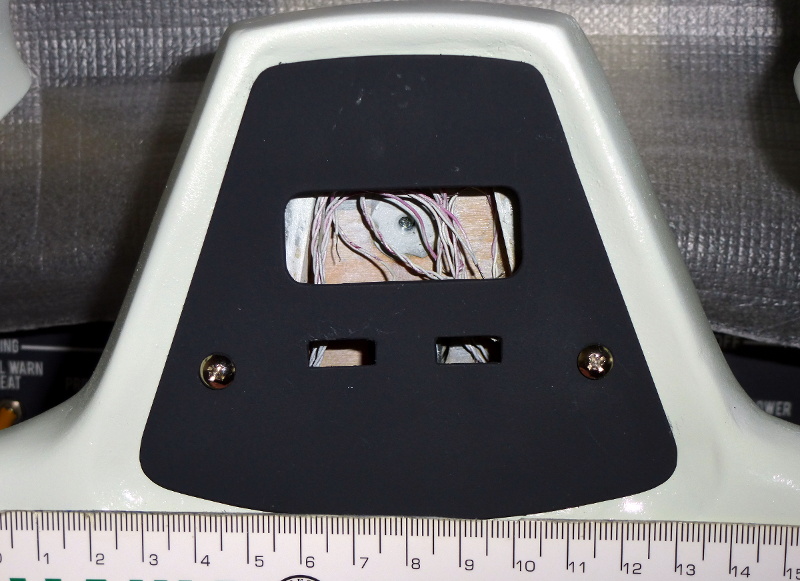

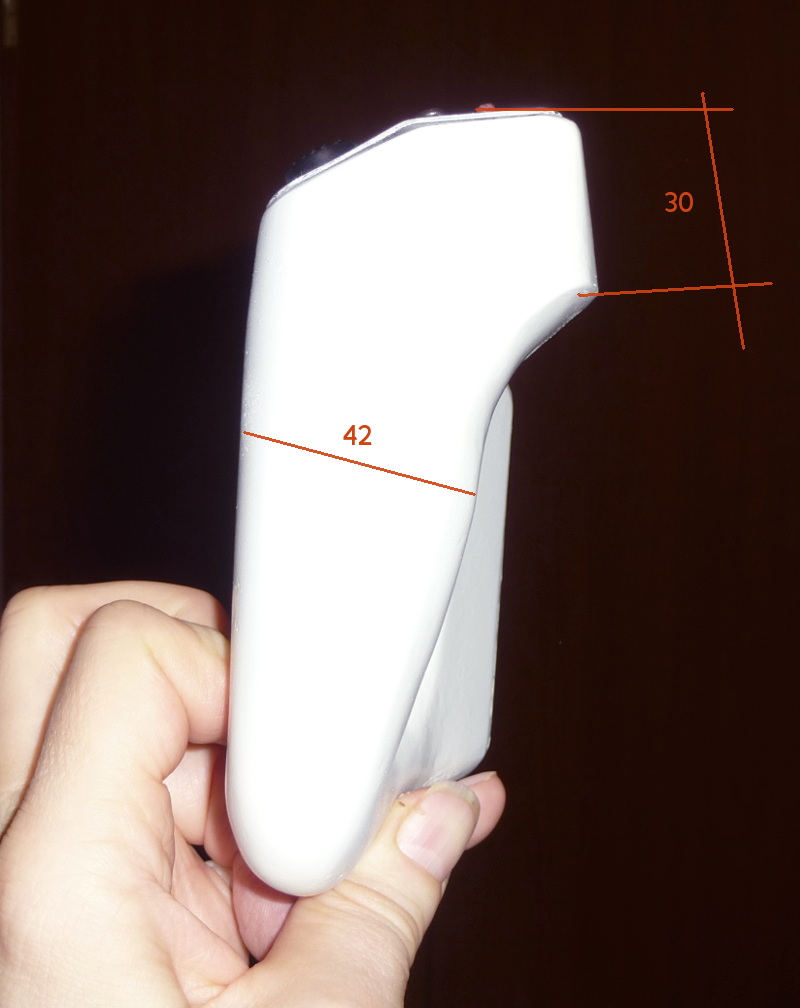

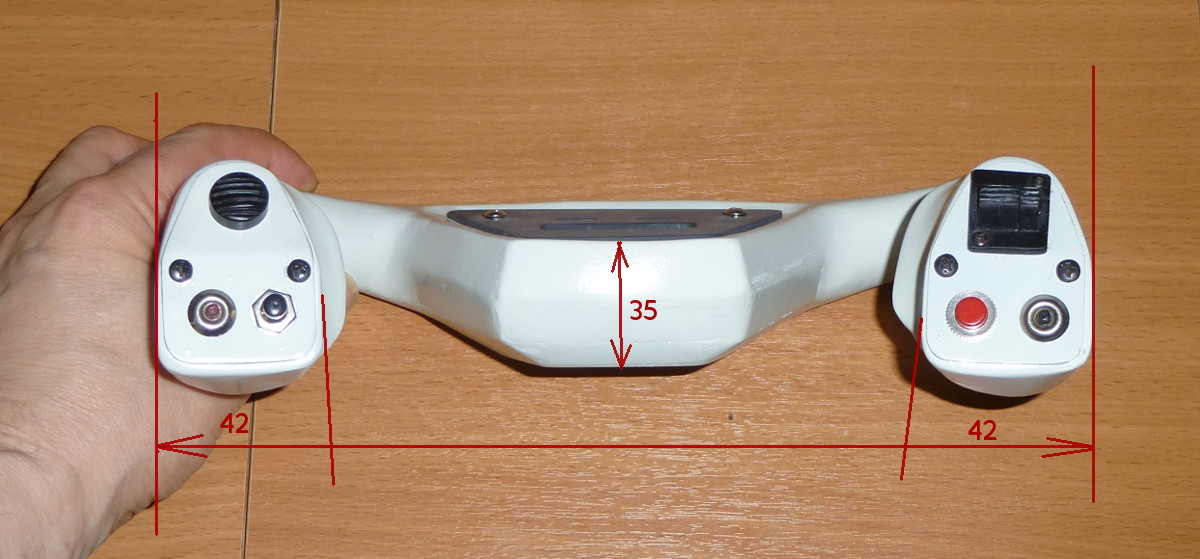

Sizes

b58img b58img b58img b58img

b58img b58img b58img b58img
